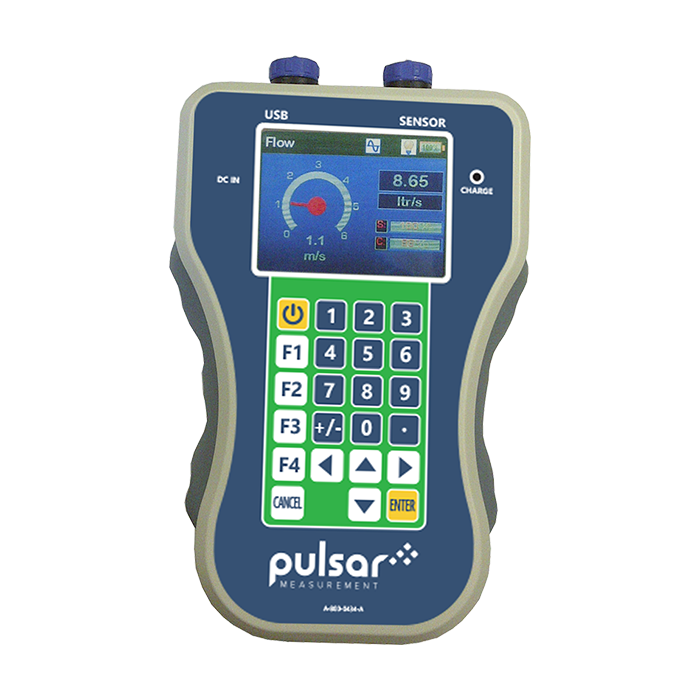

Controller Body Dimensions: 210 mm x 125 mm x 50 mm (8.3 in x 4.9 in x 2 in)
Weight: Nominal 0.6 kg (1.3 lb)
Enclosure Material/ Description: Polycarbonate UL94 V2 rated, with weather-proof connectors
Screen: 3.2 in TFT LCD
Supplied Cable Length: 2 m (9.8 ft) minimum
ENVIRONMENTAL
IP Rating: IP65 (Enclosure and Connectors Protection)
Max. & Min. Temperature (Electronics): -20 °C to +60 °C (-4 °F to +140 °F)
Max. & Min. Temperature (Battery Charging): -20 °C to +40 °C (-4 °F to +104 °F)
CE Approval: Listed in the Certificate of Conformity within the manual
PERFORMANCE
Accuracy: ±0.25% of the measured range or 6 mm (0.2 in), whichever is greater. ±2 mm (0.01 in) for dBR16 mmWAVE RADAR.
Resolution: ±0.1% of the measured range or 2 mm (0.08 in), whichever is greater
Max Range: Dependent on application and transducer, maximum 40 m (131.2 ft) dB40
Min Range: Dependent on application and transducer, minimum zero dBMACH 3
Rate Response: Fully Adjustable
DATA LOGGING
Storage Media: Internal flash memory
Storage Capacity: • 3.8 GB, 3.2 million entry without trace
• 800,000 entries with trace
Storage Format: PC files
Storage Access: File transfer to PC via USB — no driver required
SUPPLY
Rechargeable Battery: 11.1 V DC Li-ion cells
Battery Duration: 4 to 5 hours
Charging Methods: Mains charger, 12 V DC at 2 A. In-car charger
Power Supply: 12-18 V DC
Power Consumption:
• 3.5 W at 12 V not charging,
• 15 W at 12 V when charging
