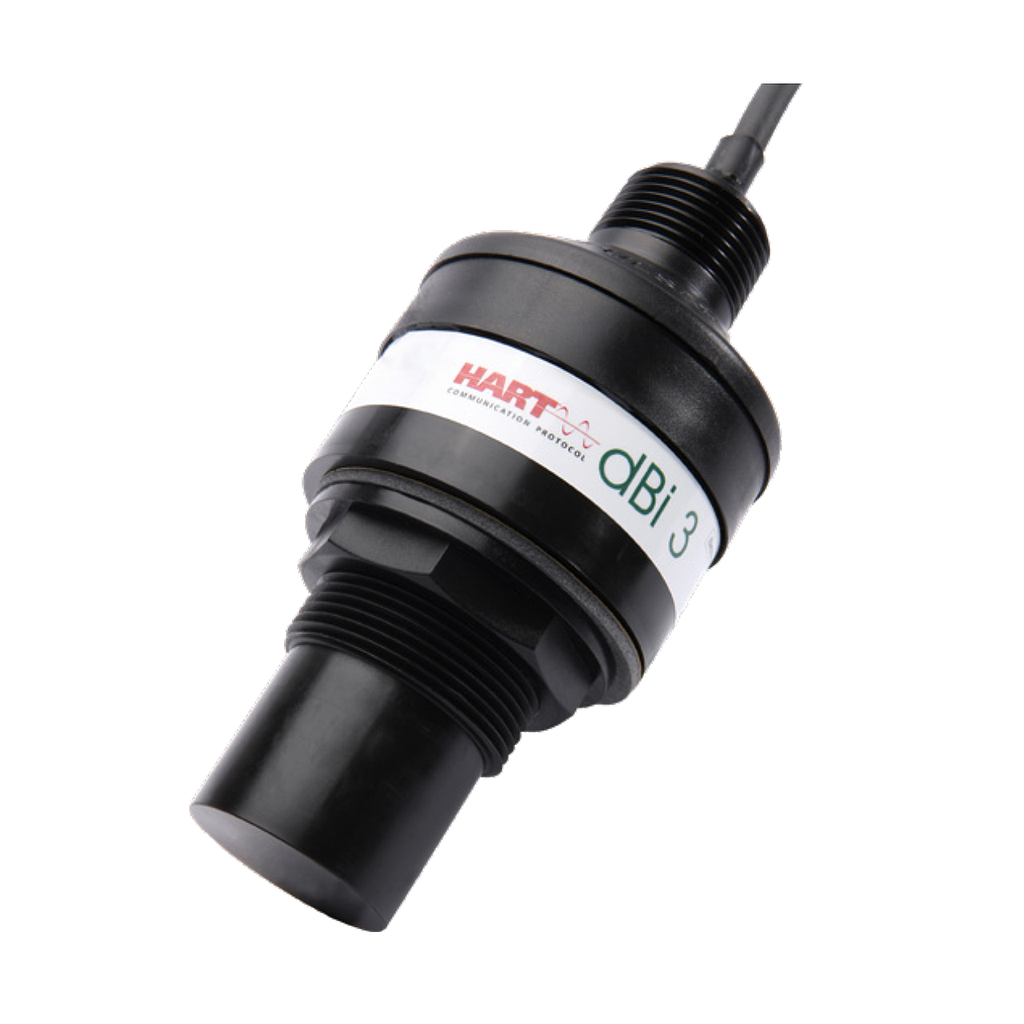

Pulsar measurement dBi3 Hart Intelligent Transducer (125mm - 3m (4.9in - 9.8ft))
Sensor Body Dimensions: 77 mm D x 134 mm H (3in x 5.3in)
Weight: 1kg (2.2lb)
Measurement range: 125mm to 3m (4.9in to 9.8ft)
Frequency: 125kHz
Beam Angle: <10°
Effective Beam Angle (using DATEM): 3°
Accuracy: 2mm (0.08 in)
Resolution: 1 mm (0.04 in)
Sensor Body Material: Valox 357 PBT
Cable Lengths: Standard: 5 m, 10 m, 20 m, or 30 m (16.4 ft, 32.8 ft, 65.6 ft, or 98.4 ft)
Optional up to 150 m (492.1 ft) maximum (increments of 10 m (32.8 ft) only)
Mounting Connection: 1” BSP or 1” NPT
Enclosure Protection: IP68 / NEMA 6P
Max. And Min.Temperature (Electonics): -40 °C to +80 °C (-40 °F to +176 °F), options for front thread and flange mounting
Input voltage range: 10-28V DC
Output: 4-20mA output, resolution 1μa
Current Consumption: 3.8-22mA
Boot Time:
From power-up to stable reading:
Cold boot = 8 seconds,
Warm boot (within 12 hours from last start-up) = 4 seconds
Temp. Compensation: Automatic, internal temperature sensor, ± 0.5 °C/°F
Communcations Protocol: HART 7
