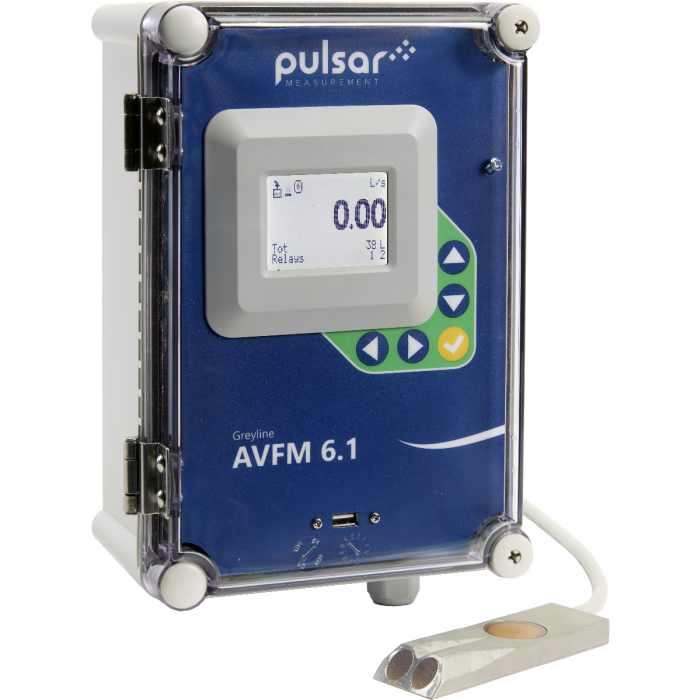

Pulsar measurement AVFM 6.1 ເຄື່ອງວັດແທກກະແສພື້ນທີ່-ຄວາມໄວ
Operating Parameters: Round pipe, rectangular, trapezoid, egg, or custom shapes
Programming: Built-in 5-key calibrator with English, French, or Spanish language selection
Electronics Enclosure: NEMA4X (IP66) polycarbonate with clear, shatterproof cover
Accuracy:
• Level: ±0.25% of reading or ±2.03 mm (0.08 in), whichever is greater. Repeatability & Linearity 0.1%.
• Velocity: ±2% of reading or ±0.012 m/s (0.04 ft/s), whichever is greater. Requires solids or bubbles minimum size
of 100 microns, minimum concentration 75 ppm. Repeatability & Linearity 0.5%
Display: White, back-lit matrix — displays flow rate, totalizer, relay states, operating mode, and calibration menu
Power Input: • 100-240 V AC 50/60 Hz, 10 V A maximum
• Optional: 9-32 V DC, 10 W maximum
Analog Output: 3 Isolated 4-20mA, 1 kΩ, (flow, level, and velocity) or 0-5 V DC by menu selection
Control Relays: 2 Relays, form ‘C’ dry contacts rated 5 A SPDT; programmable flow alarm and/or flow proportional pulse (sampler/
totalizer), flow and/or level alarm
Data logger: Programmable 26 million point data capacity, time and date stamped plus formatted flow reports including total,
average, minimum, maximum, and times of occurrence. Includes USB output to Flash Drives and Windows software.
Operating Temp.
(Electronics): -20°C to 60°C (-5°F to 140°F)
Approximate Shipping
Weight: 4.5 kg (10 lb)
Approvals: CE, CSA / UL / EN 61010-1
