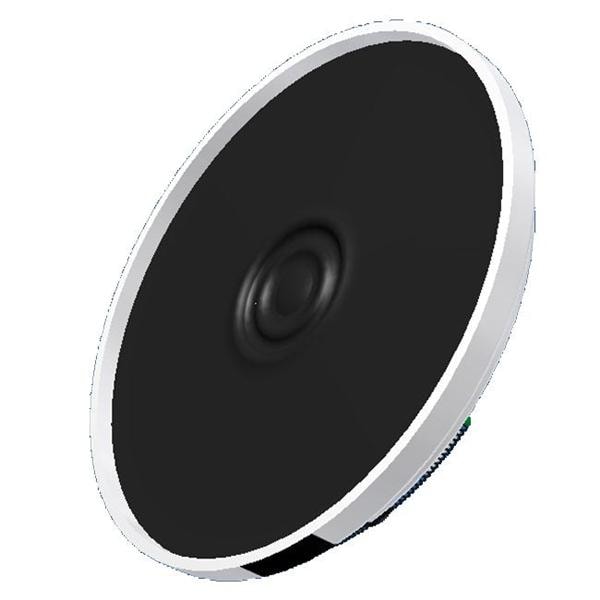

PUI Audio AS02008MR-5-R ລະບົບລະດັບສຽງອິເລັກໂຕຣແມກເນຕິກ SPEAKER .5W 8OHM 86DB 500HZ MYLAR

Depth: 3 mm

Shape: Round

Height: 3.25 mm

Diameter: 20 mm

Frequency: 630 Hz

IP Rating: IP65

Impedance: 8 Ohms

Dimensions: 20 mm L x 14 mm W x 3.25 mm H

Width - in: 0.787 in

Width - mm: 20 mm

Height - in: 0.118 in

Height - mm: 3 mm

Length - in: 0.787 in

Length - mm: 20 mm

Unit Weight: 8 g

Power Rating: 500 mW

Cone Material: Mylar

Mounting Style: Board Mount

Magnet Material: Neodymium Iron Boron (NdFeB)

Termination Style: Solder Pad

Sound Pressure Level: 87 dBA

Self Resonant Frequency: 750 Hz

Maximum Operating Temperature: + 55 C

Minimum Operating Temperature: - 25 C
