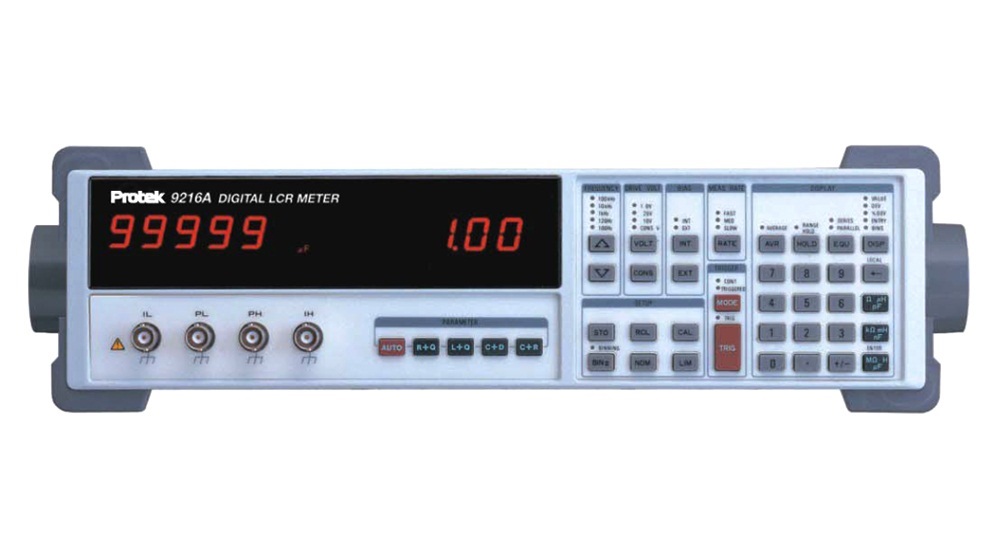

Protek 9216A Digital LCR Meter
ຜູ້ຜະລິດPROTEK(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)
Model9216A
ຕິດຕໍ່
ການຊຳລະເງິນທີ່ປອດໄພ
ການຮັບປະກັນຄຸນນະພາບ
ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ
ມີບໍລິການຈັດສົ່ງ
| General | |
| Measurement Modes | AUTO, R+Q, L+Q, C+D, C+R |
| Equivalent Circuit | Series or Parallel |
| Parameters Displayed | Value, Deviation, % Deviation or Bin Number. Deviation and % deviation are calculated from a stored relative value. |
| Averaging | 2~10 Measurement |
| Measurement Range | R+Q R 0.0001ohm~2000Mohm Q 0.00001~50 L+Q L 0.0001μH~99999H Q 0.00001~50 C+D C 0.0001pF~99999uF D 0.00001~10 C+R C 0.0001pF~99999uF R 0.00001~99999kohm |
| Test Frequency | 100Hz, 120Hz, 1kHz, 10kHz, 100kHz |
| Frequency accuracy | ±100ppm |
| Drive Voltage | 0.1V, 0.25V, 1Vrms |
| Drive levels accuracy | ±2% |
| Measurement Rate | Slow, Medium, Fast: 2, 10 or 20 measurements per second at test frequencies of 1KHz and above 0.6, 2.4, or 6 measurements per second at 100z and 120Hz. |
| Ranging | Auto or Manual |
| Triggering | Through External Trigger, Continuous, Manual or Remote over Rs232, GPIB or Handler Interface |
| Bias Voltage | Internal → 2.0 VDC±2% External → 0~+40 VDC (fused @ 0.25A) |
| Conditions | At least 30 minuts warm up, 23?±5? |
| Basic Accuracy | 0.05% |
| General | |
| Measurement Modes | AUTO, R+Q, L+Q, C+D, C+R |
| Equivalent Circuit | Series or Parallel |
| Parameters Displayed | Value, Deviation, % Deviation or Bin Number. Deviation and % deviation are calculated from a stored relative value. |
| Averaging | 2~10 Measurement |
| Measurement Range | R+Q R 0.0001?~2000M? Q 0.00001~50 L+Q L 0.0001μH~99999H Q 0.00001~50 C+D C 0.0001?~99999? D 0.00001~10 C+R C 0.0001?~99999? R 0.00001~99999k? |
| Test Frequency | 100?, 120?, 1?, 10?, 100? |
| Frequency accuracy | ±100ppm |
| Drive Voltage | 0.1V, 0.25V, 1Vrms |
| Drive levels accuracy | ±2% |
| Measurement Rate | Slow, Medium, Fast: 2, 10 or 20 measurements per second at test frequencies of 1KHz and above 0.6, 2.4, or 6 measurements per second at 100z and 120Hz. |
| Ranging | Auto or Manual |
| Triggering | Through External Trigger, Continuous, Manual or Remote over Rs232, GPIB or Handler Interface |
| Bias Voltage | Internal → 2.0 VDC±2% External → 0~+40 VDC (fused @ 0.25A) |
| Conditions | At least 30 minuts warm up, 23?±5? |
| Basic Accuracy | 0.05% |
