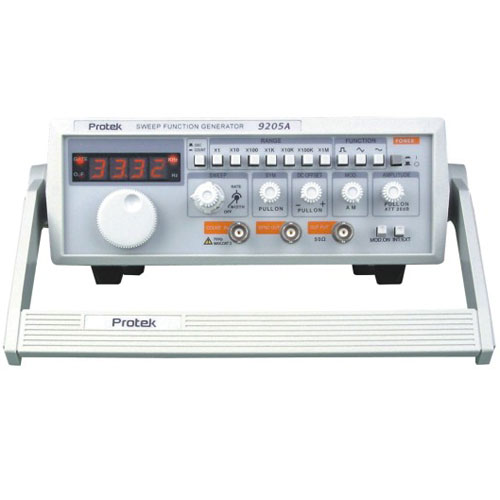

Protek 9205A 0.03 Hz ~ 3 MHz Sweep Function Generator with Frequency Counter and AM Modulation
ຜູ້ຜະລິດPROTEK(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)
Model9205A
ຕິດຕໍ່
ການຊຳລະເງິນທີ່ປອດໄພ
ການຮັບປະກັນຄຸນນະພາບ
ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ
ມີບໍລິການຈັດສົ່ງ
The Protek 9205A Sweep Function Generator handles Sine, Triangle, Square, Pulse, Ramp and Slesed Sine Waveform. AM Modulation and frequency counter function is included.
| Specification | ||
| Output | Frequency Range | 0.03 Hz to 3 MHz (7 Ranges) |
| Accuracy | Over 1Hz ±1 count ± Time Base Error | |
| Amplitude | 1Vp to 20Vp (Open Circuit), 0.5V to 5Vp (50Ω) | |
| Attenuation | Fixed 20dB ±1dB Continuity Variable | |
| Impedance | 50Ω ±5% | |
| Sine Wave | Flatness | ±3dB ~ 3 MHz |
| Distortion | 2% (10Hz ~ 100KHz) | |
| Square Wave | Rise/Fall Time | 100ns or Less |
| Triangle Wave | Linearity | 99% or More ~ 100KHz |
| Symmetry Variation | 1:1 ~ 4:1 (1MHz)/ 1:1 ~ 2:1 (2.5MHz) | |
| VCF Input | 0 ~ 10V DC | |
| Sweep Function | Mode | Linear |
| Width | 1:1 ~ 100:1 | |
| Time | 20ms ~ 2s | |
| Frequency Counter | Range | 10Hz ~ 3MHz |
| Accuracy | 0.01% ± 1 Count | |
| Max. Input Voltage | 70Vp-p | |
| Input Impedance | 1MΩ | |
| AM Modulation | 0 ~ 100%, 10V Max. Input | |
| General | Power | 100/120/220/230V AC ±10%, 50/60Hz, 14W |
| Dimension (W x D x H) | 250 x 267 x 76mm | |
| Weight | Approx 2.5Kg | |
The Protek 9205A Sweep Function Generator handles Sine, Triangle, Square, Pulse, Ramp and Slesed Sine Waveform. AM Modulation and frequency counter function is included.
| Specification | ||
| Output | Frequency Range | 0.03 Hz to 3 MHz (7 Ranges) |
| Accuracy | Over 1Hz ±1 count ± Time Base Error | |
| Amplitude | 1Vp to 20Vp (Open Circuit), 0.5V to 5Vp (50Ω) | |
| Attenuation | Fixed 20dB ±1dB Continuity Variable | |
| Impedance | 50Ω ±5% | |
| Sine Wave | Flatness | ±3dB ~ 3 MHz |
| Distortion | 2% (10Hz ~ 100KHz) | |
| Square Wave | Rise/Fall Time | 100ns or Less |
| Triangle Wave | Linearity | 99% or More ~ 100KHz |
| Symmetry Variation | 1:1 ~ 4:1 (1MHz)/ 1:1 ~ 2:1 (2.5MHz) | |
| VCF Input | 0 ~ 10V DC | |
| Sweep Function | Mode | Linear |
| Width | 1:1 ~ 100:1 | |
| Time | 20ms ~ 2s | |
| Frequency Counter |
Range | 10Hz ~ 3MHz |
| Accuracy | 0.01% ± 1 Count | |
| Max. Input Voltage | 70Vp-p | |
| Input Impedance | 1MΩ | |
| AM Modulation | 0 ~ 100%, 10V Max. Input | |
| General | Power | 100/120/220/230V AC ±10%, 50/60Hz, 14W |
| Dimension (W x D x H) | 250 x 267 x 76mm | |
| Weight | Approx 2.5Kg | |
