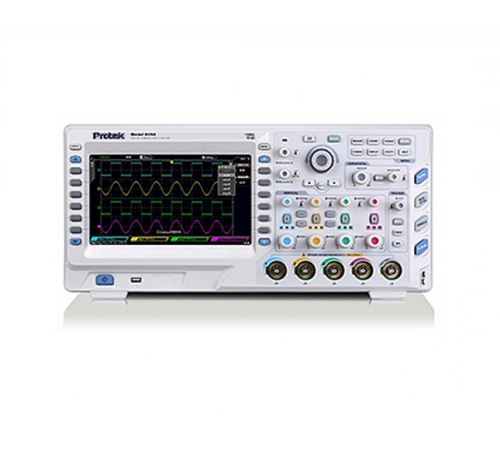

Freq Band width 100MHz
Channel 4Ch + EXT
Real-Time Sampling 1GSa/s
Waveform Capture Rage 50,000 wfms/s
Input Impedance (1MΩ±2%) // (20pF±3pF)
Memory Depth 28Mpts
Rise Time ≤3.5 ns
Time base range 5ns/div ~ 50s/div
DC Accuracy ± 3 % of Full Scale
Max Waveform
Storage 65,000 waveforms
Voltage base Range 1 mV/div ~ 20V/div (1MΩ)
Vertical resolution 8 bit
BUS
Decoding(Option)
Standard Parallel decoding ; RS232/UART,
I2C, SPI
Math function A+B, A-B, A×B, A/B, FFT, Logic Operation(√), Editable Advanced
Data Storage 256 Data(Waveform & Set value)
Automatic
Measurement
Max, Min, Peak-Peak, Top, Bottom,
Amplitude, Cycle Mean, Mean, Middle,
Cycle RMS, RMS, Overshoot, Pre shoot,
Frequency, Cycle, Rise Time, Fall Time,
Positive Pulse, Negative Pulse, Positive
Duty Ratio, Negative Duty Ratio, Delay
A→B, Delay A→B, Phase A→B, Phase B→A,
Area, Cycle Area
Dimensions & Weight :336mm(W) x 164mm(H) x 108mm(D) / ±3.5kg
Standard products Probe Kit Set, Power Cable, Manual
Input Power 100V~240VACrms,50Hz/60Hz
