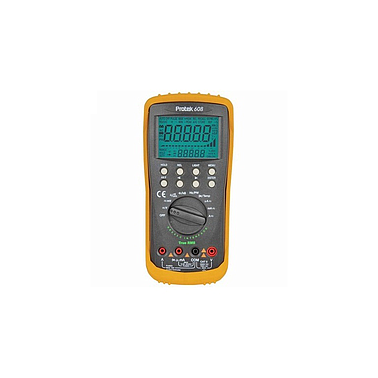

PROTEK 608 Digital Multimeter
ຜູ້ຜະລິດPROTEK(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)
Model608
ຕິດຕໍ່
ການຊຳລະເງິນທີ່ປອດໄພ
ການຮັບປະກັນຄຸນນະພາບ
ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ
ມີບໍລິການຈັດສົ່ງ
| DC Volts | |
| Ranges | 5V, 50V, 500V, 1000V |
| Best Resolution | 100µV |
| Accuracy | ±0.05% + 5D |
| mV DC | |
| Ranges | 500 mV to 2500mV |
| Best Resolution | 10µV |
| Accuracy | ±0.05% + 5D |
| AC and (AC+DC) mV | |
| Ranges | 500mV |
| Best Resolution | 10µV |
| Accuracy | AC mV: ±0.75% + 20D (AC + DC) mV: ±1.5% + 50D |
| AC Bandwidth | 50Hz to 20kHz |
| AC and (AC+DC) Volts | |
| Ranges | 5V, 50V, 500V, 750V |
| Best Resolution | 100µV |
| Accuracy | AC Volt: ±0.75% + 20D (AC + DC)Volts: ±2.0% + 50D |
| Crest Factor | Sine wave: 1.414 |
| DC CURRENT | |
| Ranges | 5000µA, 500mA, 10 Amps |
| Best Resolution | 0.1µA |
| Accuracy | ±0.2% + 5D |
| AC and (AC+DC) AMPS | |
| Ranges | 5000µA, 500mA, 10A |
| Best Resolution | 0.1µA |
| Accuracy | AC Amps: ±0.75% + 20D, 50Hz to 1kHz (AC + DC) Amps: ±1.5% + 50D, DC to 1kHz |
| Resistance (50 Ohm range is 5,000 count) | |
| Ranges | 50W, 5KW, 50KW, 500KW, 5MW, 50MW |
| Best Resolution | 10mW |
| Accuracy | ±0.2% + 5D |
| Resistance Lo Ohms (All ranges are 5,000 count) | |
| Ranges | 5KW, 50KW, 500KW; 5MW, 50MW |
| Best Resolution | 1W |
| Accuracy | ±0.5% + 5D |
| Conductance (5,000 count) | |
| Range | 500nS |
| Resolution | 0.1nS |
| Accuracy | ±3% + 5D |
| Capacitance (All ranges are 5,000 count) | |
| Ranges | 5nF, 50nF, 500nF, 5µF, 50µF, 500µF, 5000µF |
| Best Resolution | 1pF |
| Accuracy | ±2% + 5D |
| Zener Diode Test | |
| Range | 25.000 V Approx. |
| Accuracy | ±5% + 10D |
| Test | 15V to 22V |
| Continuity | |
| Ranges | 5KW, 50KW, 500KW, 5MW |
| Buzzer | Will sound at: < 0.1% of full scale of each range |
| Temperature | |
| Ranges | -20 to 1200°C, -4 to 2100°F, 253 to 1423°K |
| Display | °C, °F, °K |
| Resolution | 0.1° |
| Accuracy | ±2°C 0 to 150°C: ±3°C |
| Frequency (50Hz & 500Hz ranges are 5,000 count) | |
| Ranges | 50Hz, 500Hz, 50kHz, 500kHz, 5MHz |
| Best Resolution | 0.01Hz |
| Input Sensitivity | 2V RMS |
| Accuracy | ±0.01% + 5D |
| Pulse Width | |
| Range | 200.01ms |
| Best Resolution | 10 µs |
| Accuracy | ±0.1% + 5D |
| Duty Cycle | |
| Range | 0 to 100% |
| Resolution | 0.01% |
| Accuracy | ±0.1% + 5D |
| Peak Hold | |
| Accuracy | 10% of peak for a duration of > 5mS |
| General Specifications | |
| Operating System | Windows(r) 95/98/ME/XP/2000 |
| Update Rates | 2/s |
| RS-232 Output Medium | Infrared |
| Operating Temperature | 0 to 40°C at 80% relative humidity |
| Power | 9 Volt battery @ 36 hours of continuous operation |
| Size | 8.0" H × 3.7" W × 1.7" D (without holster) |
| Weight | 14.7 oz. |
| Standard Accessories | Manual, Protective holster, Safety probes, Temperature adapter and Probe, RS-232 cable, CD ROM |
