Measuring Range0.01 Ω to 2.00 x 1014 Ω
Measurement ModesAuto, Manual, Auto-Manual, Continuous
Display6.9 cm x 4.8 cm (2.7” x 1.9")
6 digit - 7 segment color HTN display
Battery PowerRe-chargeable Li-Ion battery (included). Battery swappable through easily accessible battery door at the rear of the instrument
Battery ChargingRechargeable via USB 2.0 through PC port or Wall Charger (included)
Battery Charge IndicatorBattery has a status indicator on instrument screen
Battery Charging Time2 hours
Battery Life480 hours typical
50 hours (of continuous use)
Approximately 8,000 measurements
Memory Capacity999 data sets
Memory Data SetsData sets include resistance, test voltage, electrification period and timestamp.
Data DownloadCompatible with Connect 2.01
USBUSB 2.0 A to Micro-B
Operating Temperature10°C to 30°C (50°F to 80°F)
Operating Relative Humidity0% – 85%, non-condensing
Operating Altitude2000 m
Storage Temperature-30°C to +60°C (-22 °F to +140 °F)
Dimensions (WxHxD)117 mm x 188.5 mm x 48 mm
4.59 in x 7.42 in x 1.90 in
Weight510 g (1.12 lb)
Case MaterialPolycarbonate with Rubber Side Grips
ColorBlack

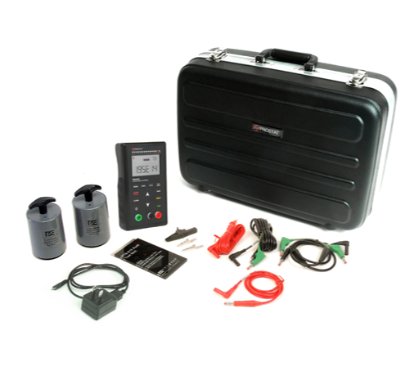

Included:
PRS-801B Resistance Meter
801B-012 Li-ion Bbattery Pack
800LB 10 foot Silicone Test Lead - Black
800LR 10 foot Silicone Test Lead - Red
800PSL Premium Shielded Test Lead
800TVL High Resistance Voltage Test Lead
PAS-853S Test Lead Shunt
PTB-915 Audit Test Bed
800B-001 AC/DC Power Supply
800B-002 Micro USB Cable
RS-801BC Bulldog Clip
PSI-870MAC Metal Clip (2)
Connect 2.0 PC Utility Software
PRS-801W 5 lbs Conductive Rubber Electrodes (2)
PMK-151C Carrying Case
