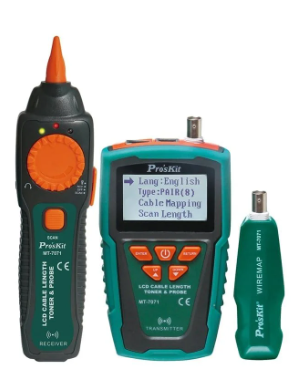

Proskit MT-7071N ຄວາມຍາວຂອງສາຍ LCD Toner & Probe Kit

Transmitter Unit

Display: LCD 128 x 64 Dots (50 x 27.5 mm)

Language: English, Chinese

Connection Ports

RJ45 x 2 ports

BNC x 1 port

Battery Power: 9V x 1 (6LR61 or 6F22)

Network Cable

Cable Types: CAT5E, CAT6, CAT6A, CAT7 Ethernet cable, Telephone cable, Coaxial BNC cable

Maximum Range: 300 m

Display: LCD: R&M 1-8/G

Cable Length Measurement

Cable Types: CAT5E, CAT6 Ethernet cable, Telephone cable

Maximum Range: 2.5 m – 200 m

Units: m/yard/feet

Accuracy: ±5%

Cable Probe

Cable Types: CAT5E, CAT6, CAT6A, CAT7 Ethernet cable, Telephone cable, Coaxial BNC cable

Detection Range: 600 m

Frequency: 455kHz

Maximum Signal Voltage: 9V ± 1Vp-p

Flash Port

Blinking Frequency: 3s/ time

Link Test: 10M/100M/1000M, FDX/HDX, Auto Nego/ Non-Auto Nego

Backlight: 5s/10s/15s/on/off

Auto Turn-off: 15 minutes/30 minutes/1 hour/OFF

Working Current: ≤ 150mA

Protection: ≤ 60V DC

Dimensions: 138 x 80 x 35 mm

Receiver Unit

Switch: 4 positions (Battery light/NCV/Off/Scan)

Button: 1

Response Frequency: 455kHz

Sound: ≥85 dB

Receiving Signal: Noise elimination

Tone Type: 1 type

Sensitivity: Adjustable with a variable resistor

Indicators: LED x 3

Flashing Light: LED x 1

Connection Ports: RJ45 x 1, Audio port 3.5mm

Battery Power: 9V x 1 (6LR61 or 6F22)

Working Current: ≤ 100mA

Dimensions: 202 x 50 x 32 mm

Remote Unit

Connection Ports: RJ45 x 1, BNC x 1

Dimensions: 106 x 32 x 30 mm.
