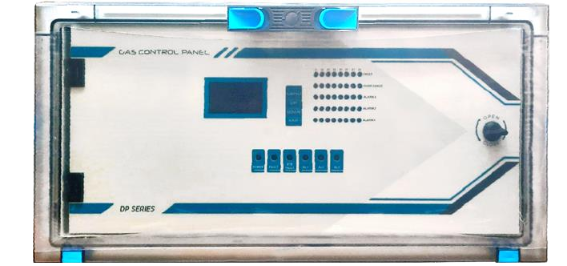

Prosense S-DP4 ແຜງຄວບຄຸມການກວດຈັບອາຍແກັສ (4 × 4–20 mA analogue channels)
Inputs: 4 × 4–20 mA analogue channels
Monitoring: Simultaneous monitoring of measurement levels, alarm and fault status
Relay Outputs: Programmable: FAULT, ALARM1, ALARM2, ALARM3, OVERRANGE (optional programmable relay); adjustable NO/NC contacts
Data Logging: Alarm, fault and maintenance logs up to 500 events
Display: Graphic OLED 128×64
LED Indicators:
Zone status: FAULT, ALARM1, ALARM2, ALARM3, OVERRANGE (40 LEDs)
General status: Power/On, FAULT, ALARM1, ALARM2, ALARM3, SYS-FAULT
Buzzer: Yes
Programming: User-friendly software enables easy programming via 4 buttons on the panel door
Remote Monitoring: Cloud data connection for remote monitoring
Power Supply: 220 VAC / 110 VAC
Main Power Fuse: 2 A
Power Consumption: 27 VDC / 250 mA – max. 8 W (without connected detectors)
Backup Battery: 2 × 12 V, 7 Ah (optional)
Backup Battery Fuse: 2 A
Ingress Protection: IP66
Humidity: 10–95% RH, non-condensing
Operating Temperature: -20°C to +60°C
Cable Gland: PG11, IP66
Panel Material: PC (Polycarbonate), halogen-free, silicon-free, durable (960°C hot wire test), UV resistant
Dimensions / Weight: 366 × 276 × 186 mm / 4.25 kg
Mounting: Modular structure
