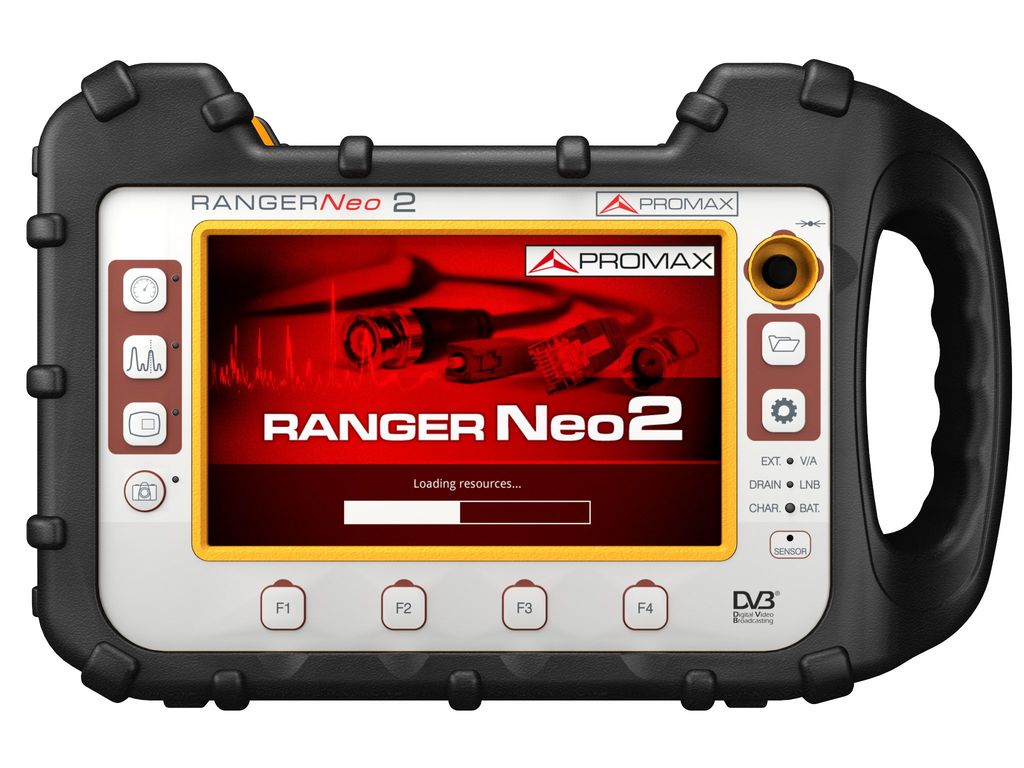

Promax RANGERNeo 2 Professional field strength meter and spectrum analyzer
DIGITAL BROADCAST STANDARDS:
ISDB-T/Tb
QAM Annex B
DVB-C
DVB-S, DVB-S2, DVB-S2 multistream
ISDB-T/Tb
DSS, ACM/VCM/CCM
MPEG-TS
AUDIO CODECS: MPEG-1, MPEG-2, AAC, HE-AAC, Dolby Digital, Dolby Digital Plus
VIDEO CODECS: MPEG-2, MPEG-4 / H.264, HEVC / H.265
INPUTS AND OUTPUTS:- Universal RF input 75 Ω
- HDMI output
- IP input for remote control
- Analogue Video/Audio input
- 2xUSB (Type-A) for data transfering
FUNCTIONS:Merogram and Spectrogram
Constellation diagram LTE
Dynamic echoes analysis
Audio/Video streaming
SCAN + TILT
StealthID (instant identification of tuning parameters)
PLS (Physical Layer Scrambling)
Ultra fast spectrum analyser (70 ms sweeping time) with MAX/MIN hold
4K Frame grabber
FM RDS radio measurements and decoding
Screenshots and Datalogger for measurement reports
Wideband LNB
WiFi 2.4 GHz
OTT
Service Recording
DVB-S2 multistream
Signal monitoring
Field strength
Task planner
TS Recording
TS Analysis
webControl
IPTV multicast
Shoulder Attenuation
Beacon-Flyaways SNG and VSAT
GPS Coverage Analysis (optional
SPECTRUM ANALYZER
Frequency Margin: From 5 - 1000 MHz (Terrestrial)
From 250 - 2500 MHz (Satellite)
Measurement range Span : From 10 - 130 dBµV
Full / 500 / 200 / 100 / 50 / 20 / 10 MHz
Resolution bandwidths:2 kHz (terrestrial)
10, 20, 30, 40, 100, 200 kHz
1 MHz
MEASUREMENT MODE (please refer to STANDARDS section)
Frequency Margin: From 5 - 1000 MHz (Terrestrial)
: From 250 - 2350 MHz (Satellite)
DVB-T COFDM :Power (35 to 115 dBμV), CBER, VBER, MER, C/N, Link margin
DVB-T2 Base and Lite COFDM: Power (35 to 115 dBμV), CBER, C/N, LBER, MER, Link Margin, BCH ESR, LDP iterations, Wrong packets
DVB-C QAM: Power (45 to 115 dBμV), BER, MER, C/N, Link margin
DVB-C2 COFDM: Power (45 to 115 dBμV), CBER, MER, C/N, LBER, BCH ESR, LDP iterations, wrong packets
PAL, SECAM and NTSC: M, N, B, G, I, D, K and L
FM radio :Level measurement
DVB-S QPSK: Power (35 to 115 dBμV), CBER, MER, C/N, Link Margin
DVB-S2 QPSK, 8PSK, 16/32APSK: Power (35 to 115 dBμV), CBER, LBER, MER, C/N, BCH ESR, Wrong packets, Link Margin
DSS QPSK :Power (35 to 115 dBμV), CBER, VBER, MER, C/N, Link margin
INTERNAL STORAGE: 6 GB for measurement protocols, screenshots and transport stream recordings
PC CONNECTION (via ethernet interface): NetUpdate 4 (free software) + Free and automatic firmware updates + User customised channel plans+ Measurement reports and screenshots
GENERAL:Hybrid operation: Touch screen (7”) or conventional keyboard
DiSEqC 2.x generator (DiSEqC 1.2 commands implemented)
dCSS / SCD 2 (EN50607) and SATCR/SCD (EN50494)
BATTERY: > 4h(smart battery)
HARD CASE: Included
OPTION:
DAB, DAB+: Available
GPS Coverage Analysis: Available
Advanced DAB/DAB+ analyzer: Available
Advanced FM radio analyzer: Available
Rack assembly 19” 4U: 482 (W.) x 178 (H.) x 205 (D.) mm: Available
OPM + Optical-to-RF converter + WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input: Available
WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input: Available
