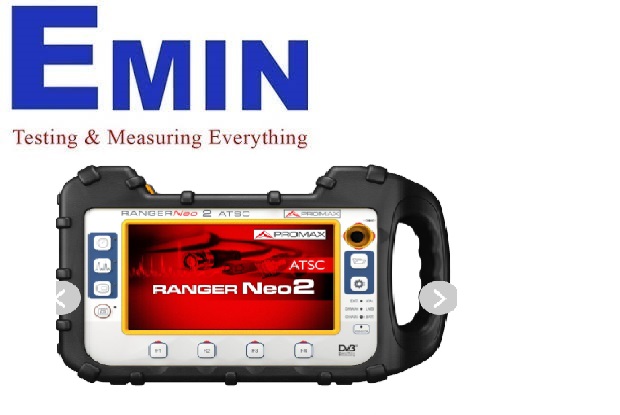

Promax RANGERNeo 2 ATSC Professional field strength meter and spectrum analyzer
Manufacturer: Promax
Model:RANGERNeo 2 ATSC
Origin: England
Warranty: 12 months
DIGITAL STANDARDS:ATSC
QAM annex B
DVB-C
DVB-S, DVB-S2, DVB-S2 multistream
DSS, ACM/VCM/CCM
PEG-TS
AUDIO CODECS:MPEG-1, MPEG-2, AAC, HE-AAC, Dolby Digital, Dolby Digital Plus
VIDEO CODECS:MPEG-2, MPEG-4 / H.264, HEVC / H.265
INPUTS AND OUTPUTS:
Universal RF connector 75 Ω
ASI-TS input and output
IPTV input UDP/RTP RJ45 Ethernet 1 Gbps
HDMI output
IP input for remote control
Analogue Video/Audio input
Common Interface module slot
2xUSB for data tranferring and GPS module
SPECTRUM ANALYZER:
Frequency Margin:From 5 - 1000 MHz (Terrestrial)
Measurement range:From 250 - 2500 MHz (Satellite)
Span:From 10 - 130 dBµV
Resolution bandwidths:2 kHz (terrestrial)
10, 20, 30, 40, 100, 200 kHz
1 MHz
MEASUREMENT MODE (please refer to STANDARDS section)
Frequency Margin:From 5 - 1000 MHz (Terrestrial)
From 250 - 2350 MHz (Satellite)
ATSC :Power (45 to 100 dBμV), SER, VBER, MER, C/N, Link margin
QAM ITU-J83 Annex B :Power (35 to 115 dBμV), BER, MER, C/N, Noise Margin, BCH ESR, LDCP iterations, Wrong packets
DVB-C QAM,ITU - J83 Annex A :Power (45 to 115 dBμV), BER, MER, C/N, Link margin
PAL, SECAM and NTSC analogue TV:M, N, B, G, I, D, K and L
FM radio :Level measurement
DVB-S QPSK: Power (35 to 115 dBμV), CBER, MER, C/N, Link Margin
DVB-S2 QPSK, 8PSK, 16APSK, 32APSK: Power (35 to 115 dBμV), CBER, LBER, MER, C/N, BCH ESR, Wrong packets, Link Margin
DSS QPSK: Power (35 to 115 dBμV), CBER, VBER, MER, C/N, Link margin
INTERNAL STORAGE:6 GB for measurement protocols, screenshots and transport stream recordings
PC CONNECTION (via ethernet interface):NetUpdate 4 (free software) + Free and automatic firmware updates
+ User customised channel plans + Measurement reports and screenshots
GENERAL:Hybrid operation: Touch screen (7”) or conventional keyboard
DiSEqC 2.x generator (DiSEqC 1.2 commands implemented)
dCSS / SCD 2 (EN50607) and SATCR/SCD (EN50494)
BATTERY:> 4 h (smart battery)
HARD CASE:Included
OPTIONS:
DAB, DAB+ : Available
GPS Coverage Analysis : Available
Rack assembly 19” 4U: 482 (W.) x 178 (H.) x 205 (D.) mm: Available
OPM + Optical-to-RF converter + WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input: Available
WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input: Available
