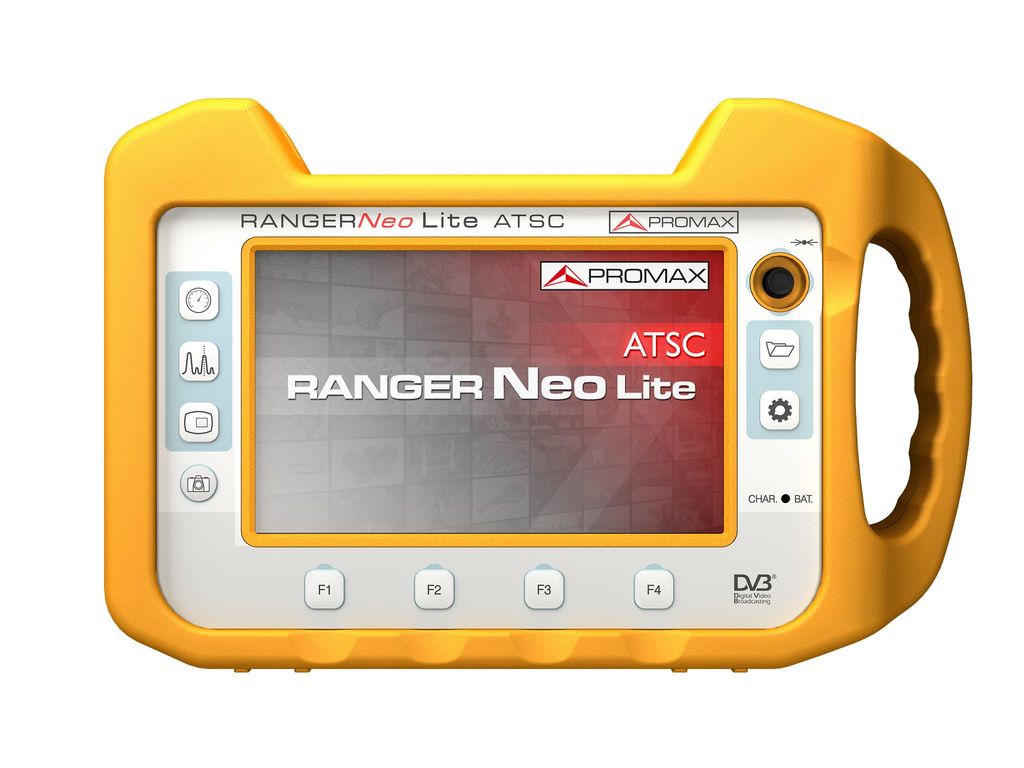

Promax RANGER Neo Lite ATSC Multifunction field strength meter and spectrum analyzer
DIGITAL BROADCAST STANDARDS:ATSC
DVB-C, QAM Annex B
DVB-S, DVB-S2
DVB-S2 Multistream
DSS, ACM / VCM / CCM
AUDIO CODECS: MPEG-1, MPEG-2, AAC, HE-AAC, Dolby Digital, Dolby Digital Plus
VIDEO CODECS: MPEG-2, MPEG-4 / H.264, HEVC / H.265
INPUTS AND OUTPUTS:- Universal RF input 75 Ω
- HDMI output
- IP input for remote control
- Analogue Video/Audio input
- 2xUSB (Type-A) for data transfering
FUNCTIONS:Constellation diagram
LTE ingress test
StealthID (instant identification of tuning parameters)
PLS (Physical Layer Scrambling)
Ultra fast spectrum analyzer (70 ms sweep time)
4K Frame grabber
MAX and MIN hold
FM RDS radio measurement and decoding
Screenshots and
Datalogger for meas.reports
Beacon-Flyaways SNG
and VSAT
Wideband LNB
WiFi 2.4 GHz
LTE 1.8 GHz
OTT
Service Recording
Field strength measurement
Task planner
SPECTRUM ANALYZER
Frequency Margin: From 5 - 1000 MHz (Terrestrial)
From 250 - 2500 MHz (Satellite)
Measurement range Span : From 10 - 130 dBµV
Full / 500 / 200 / 100 / 50 / 20 / 10 MHz
Resolution bandwidths:100 kHz
MEASUREMENT MODE (please refer to STANDARDS section)
Frequency Margin: From 5 - 1000 MHz (Terrestrial)
: From 250 - 2350 MHz (Satellite)
ATSC: Power (45 to 100 dBμV), SER, VBER, MER, C/N, Link margin
QAM ITU-J83 Annex B: Power (35 to 115 dBμV), BER, MER, C/N, Noise Margin, BCH ESR, LDCP iterations, Wrong packets
DVB-C QAM,ITU - J83 Annex A: Power (45 to 115 dBμV), BER, MER, C/N, Link margin
PAL, SECAM and NTSC analogue TV: M, N, B, G, I, D, K and L
FM radio : Level measurement
DVB-S QPSK : Power (35 to 115 dBμV), CBER, MER, C/N, Link Margin
DVB-S2 QPSK, 8PSK, 16APSK, 32APSK: Power (35 to 115 dBμV), CBER, LBER, MER, C/N, BCH ESR, Wrong packets, Link Margin
DSS QPSK: Power (35 to 115 dBμV), CBER, VBER, MER, C/N, Link margin
INTERNAL STORAGE: 6 GB for measurement protocols, screenshots and transport stream recordings
PC CONNECTION (via ethernet interface): NetUpdate 4 (free software) + Free and automatic firmware updates + User customised channel plans+ Measurement reports and screenshots
GENERAL:Hybrid operation: Touch screen (7”) or conventional keyboard
DiSEqC 2.x generator (DiSEqC 1.2 commands implemented)
dCSS / SCD 2 (EN50607) and SATCR/SCD (EN50494)
BATTERY: > 2h(smart battery)
HARD CASE: Optional
