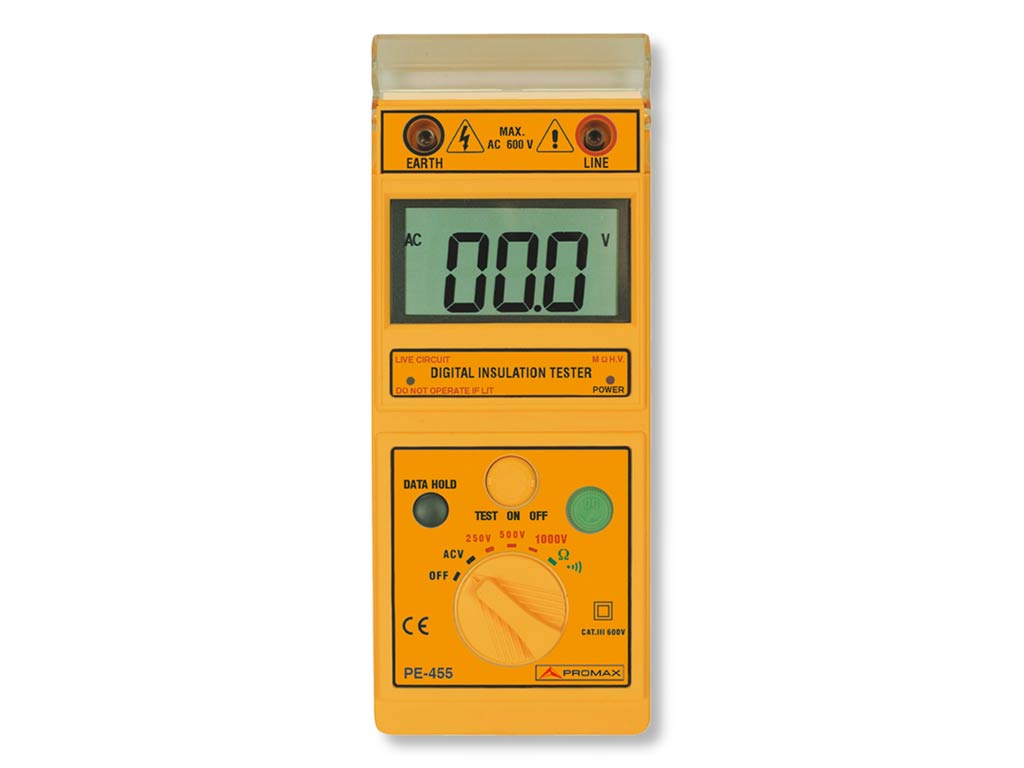

Promax PE-455 Insulation Tester
Insulation Resistance
Auto range: 20 MΩ / 200 MΩ / 2000 MΩ.
Range: 20MΩ, Resolution: 10kΩ, Accuracy: ±(1.5% rdg + 5 dgt)
Range: 200 MΩ, Resolution: 10kΩ, Accuracy: ±(2.5% rdg + 3 dgt)
Range 2000 MΩ, Resolution: 1 MΩ, Accuracy: ±(5% rdg + 5 dgt)
Output current:
1 mA DC min. at 0.25 MΩ (250 V range).
1 mA DC min. at 0.5 MΩ (500 V range).
1 mA DC min. at 1 MΩ (1000 V range).
AC Voltage
Range: 0 - 600 V ± 1 V (± 1.5% rdg ± 3 dgt)
Line frequency range: 40 - 120 Hz.
Resistence
Range: 20 MΩ, Min resolution: 0.1 Ω
Range: 200 MΩ, Min resolution: 0.1 Ω
Range: 2000 MΩ, Min resolution 1 Ω
Accuracy: ±(1.5% rdg + 3 dgt)
Power supply
Batteries: 9 V DC (6 batteries x 1.5 V R6 type)
Mechanical features
Dimensions: W. 90 x H. 205 x D. 55 (mm).
Weight: Approx. 600 g (batteries included).
Included accessories:
PP010 Test leads with safety clamps.
Fuse 0.5 A 250 V.
User’s manual.
Transport suitcase.
