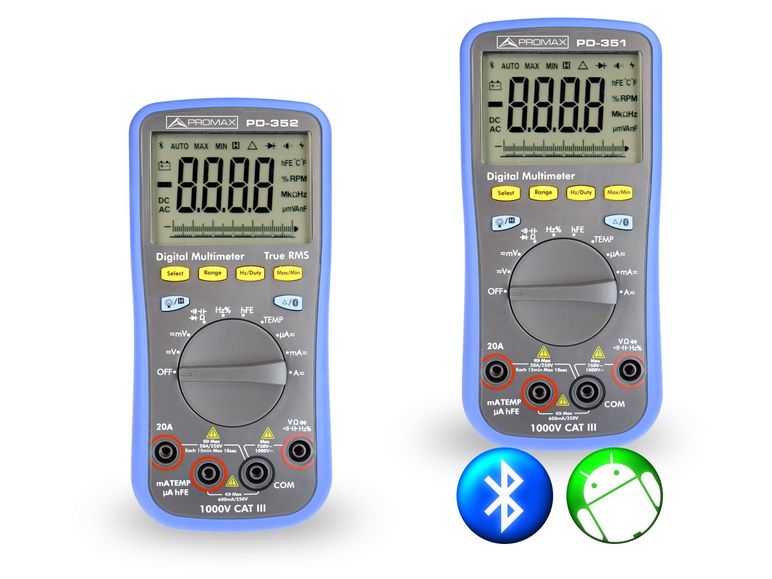

Promax PD-352 Digital Multimeter
Measurement Range, Resolution, Accuracy
Voltage DC:
- 60 mV/600 mV, 0.01 mV, ±(0.5% + 2 dig)
- 60 mV/ 600 mV /6 V /60 V, 0.1 mV, ±(0.5% + 2 dig)
- 600 V / 1000 V, 0.1 V, ±(0.5% + 2 dig)
Voltage AC:
- 60 mV/600 mV, 0.01 mV, ±(0.8% + 2 dig)
- 60 mV / 600 mV / 6 V / 60 V, 1 mV, ±(0.8% + 2 dig)
- 600 V / 750 V, 0.1 V, ±(1% + 3 dig)
Current DC:
- 600 μA, 0.1 μA, ±(0.8% + 2 dig)
- 600 μA / 6 mA / 60 mA / 600 mA / 6 A, 0.01 mA, ±(0.8% + 2 dig)
- 20 A, 1 mA, ±(1.2% + 3 dig)
Current AC:
- 600 μA, 0.1 μA, ±(1% + 3 dig)
- 6 mA / 60 mA / 600 mA / 6 A, 0.01 mA, ±(0.8% + 2 dig)
- 20 A, 1 mA, ±(2% + 3 dig)
Resistance:
- 600 Ω /6 kΩ/60 kΩ /600 kΩ /6 MΩ/10 MΩ, 0.1 Ω, ±(0.8% + 2 dig)
- 60 MΩ, 0.01 MΩ, ±(2% + 3 dig)
Capacitance:
- 40 nF, 0.01 nF, ±(2.5% + 3 dig)
- 400 nF / 4 μF / 40 μF, 0.1 nF, ±(2.5% + 3 dig)
- 400 μF / 4000 , 0.1 μF, ±(3% + 5 dig)
Frequency: 9.999 Hz / 99.99 Hz/999.9 Hz/9.999 kHz/99.99 kHz/999.9 kHz /9.999 MHz, 1 MHz, ±(0.8% + 2 dig)
Duty cycle:
- 0.1% - 99,9% (Típico: Vrms=1 V, f=1 kHz), 0.1%, ±(1.2% + 3 dig)
- 0.1% - 99,9% (≥1 kHz), ±(2.5% + 3 dig)
Temperature: -50 ℃ to 400 ℃, 1 ℃, ±(2.5% + 3 dig)
Frequency response (Hz): (40 - 10k) Hz
Sample rate for digital data: 3 samples/s
Sample rate for analog bar graph: 30 samples/s
Bluetooth: Yes
True RMS: Yes
Input impedance: 10 MΩ
Battery: 3 V (1.5 V × 2) AA alkaline batteries
LCD screen: 69 mm x 52 mm
Dimensions: 85 (W.) x 185 (H.) x 30 (D.) mm
Weight (without package): 0.32 kg
Working temperature: 0 ℃ to 40 ℃
Storage temperature: -10 ºC to 60 ºC
Relative Humidity: ≤ 80%
Accessories: Test lead, Alligator clip, K-type thermocouple, Multi-functional test socket, Soft bag, Quick reference guide
