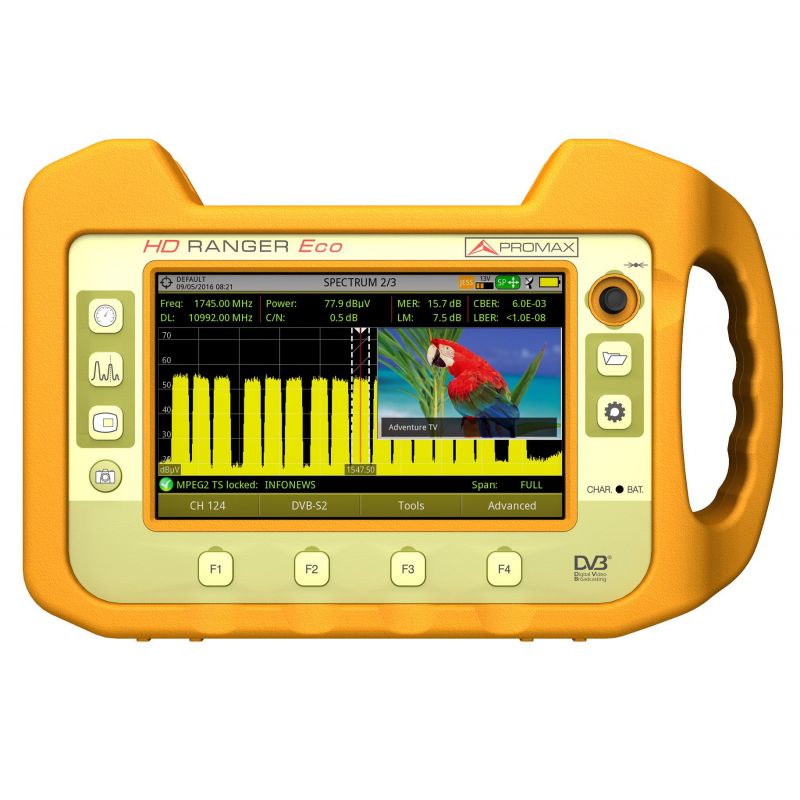

Promax HD RANGER Eco Field strength meter and spectrum analyzer
MEASUREMENT MODE
Tuning range: Displayed data: Numeric and Level bar
From 5 to 1000 MHz (Terrestrial), 950 to 2150 MHz (Satellite)
DVB-T COFDM Measures : From 35 dBμV to 115 dBμV
Power, CBER, VBER, MER, C/N and Link margin
DVB-T2 Base and Lite COFDM Measures : From 35 dBμV to 115 dBμV
Power, CBER, C/N, LBER, MER, BCH ESR, LDP Iterations, Link Margin and Wrong packets
DVB-C QAM, J83 Annex C QAM Measures :From 45 dBμV to 115 dBμV
Power, BER, MER, C/N and Link margin
DVB-C2 COFDM Measures :From 45 dBμV to 115 dBμV
Power, CBER, MER, C/N, LBER, BCH ESR, LDP Iterations, Link Margin and Wrong packets
Analogue TV PAL, SECAM and NTSC Standard supported :M, N, B, G, I, D, K and L
FM radio Measures:Level
DVB-S QPSK Measures:From 35 dBμV to 115 dBμV
Power, CBER, MER, C/N and Link Margin
DVB-S2 QPSK, 8PSK, 16APSK, 32APSK Measures:From 35 dBμV to 115 dBμV
Power, CBER, LBER, MER, C/N, BCH ESR, Wrong Packets and Link Margin
DSS QPSK Measures:From 35 dBμV to 115 dBμV
Power, CBER, VBER, MER, C/N, Link Margin and Noise Margin
SPECTRUM ANALYSER MODE
Tuning range: From 5 to 1000 MHz (Terrestrial), 950 to 2150 MHz (Satellite)
Reference Level: From 70 dBμV to 120 dBμV (Adjustable in steps of 5 dB)
Span: Full span / 500 MHz / 200 MHz / 100 MHz / 50 MHz / 20 MHz / 10 MHz
Measurement range : From 20 to 120 dBµV
Measurement bandwidth: 100 kHz
VIDEO
Codecs :MPEG-1, MPEG-2, MPEG-4 AVC H.264
Maximum Image Size :1920x1080x60i; 1280x720x60p/50p
AUDIO CODECS: MPEG-1, MPEG-2, HE-AAC, Dolby Digital Plus
TOOLS :Constellation diagram, Dynamic echoes, Attenuation Test (2), Datalogger (3), PLS indicator, ISI filtering,
Screen capture Key, Signal monitoring, Field strength, Task planner, H.265 detection
GENERAL
Inputs and outputs
RF input F-type male, 75 Ω
USB Interface Mini-USB. Mass storage host, Serial port emulation, USB CDC “Communications Device Class”
Video/Audio input Jack multipole connector
Monitor Display 7" TFT, 16:9
Ext. Unit Power (through RF input connector)
Terrestrial Supply: External, 5, 12 and 24 V
Satellite Supply: External, 13 V, 15 V, 18 V
22 kHz signal:Selectable in Satellite band
DiSEqC Generator: According to DiSEqC 1.2 standard (1)
Dimensions & Weight: 290 (W.) x 185 (H.) x 65 (D.) mm. 1.6 kg.
Battery Operation Time: > 2 hours in continuous mode
Included Accesories: Connection USB Cable On-the-go (A) Male – Mini USB (B) Male,
USB Cable (A) Female – Mini USB (A) Male, Car lighter charger, External DC charger,
F/H adapters to BNC/H / DIN/H / F/H, Mains cord, Transport belt, Carrying bag, Quick Reference Guide
