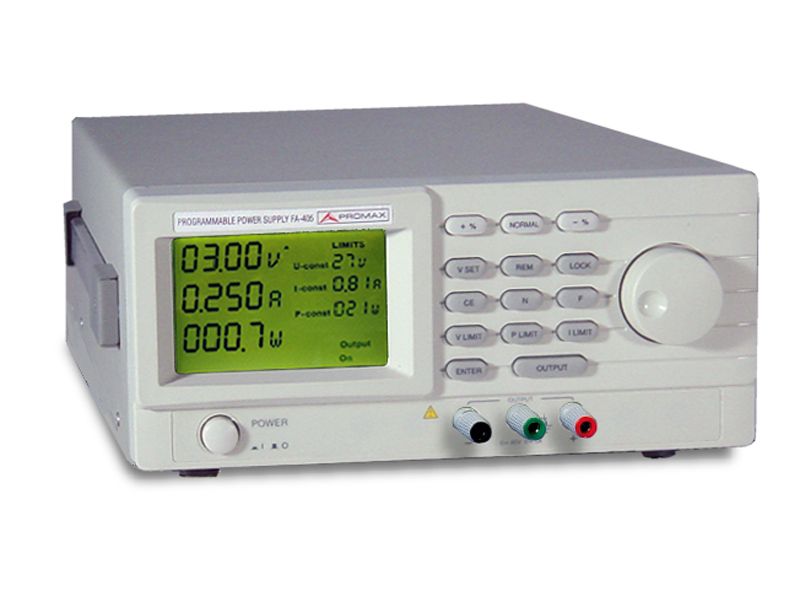

Promax GR-405 ການສະຫນອງພະລັງງານຕາມໂຄງການ (40V-5A)
Output voltage: DC From 0 to 40 V
Output current: 0 to 5 A
- Voltage regulation:
Voltage load regulation: ≤10 mV
Voltage line regulation: ≤ 0.05 %
- Current regulation:
Current load regulation: ≤ 5 mA
Current line regulation: ≤ 0.05%
- Ripple:
Voltage (mV effective value): ≤ 20 mV
Current (mV effective value): ≤ 10 mA
- Resolution of programming and measurement:
Voltage: 10 mV
Current: 2 mA
- Accuracy of programming and measurement:
Voltage: ± 0.05 % reading + 3 digits
Current: ± 0.1% reading + 5 digits
- Incremental Control Programmable: from 0 to ± 50%
- Protections: OVP/OCP/OPP/OTP
LCD display Simultaneous presentation of current/limits, with backlighting: voltage, power and current; as well as exit-locking conditions and remote control.
- Remote control: RS-232C standard
- Additional security: Exit key ON / OFF Blocking controls key
- Power supply: AC 115 V/230V ± 15%, 50/60 Hz
- Consumption: Up to 420 W
- Dimensions: W. 225 x H. 100 x 305 D. mm
- Weight: 4 kg
