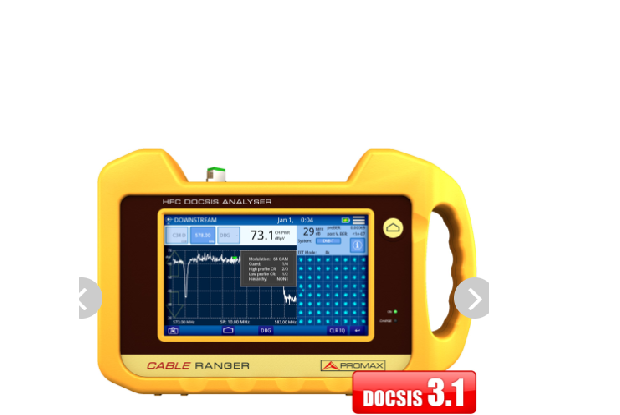

Promax CABLE RANGER 3.1 Hybrid DOCSIS 3.1 / HFC Touchscreen analyzer
SPECTRUM ANALYZER:Covers DOCSIS 3.0 and DOCSIS 3.1 RF requirements
Frequency margin: From 5 to 2700 MHz
Resolution: 10 kHz
Resolution bandwidth: 220 kHz / 2 MHz
SPAN: From 10 MHz to Full band
LEVEL MEASUREMENT
Dynamic range: -50 to -60
Measuring range: 0.1 dB
Accuracy: ±2 dB
Input impedance: 75 Ω
Units: dBmV, dBµV, dBm
DOCSIS
Built-in cablemodem: DOCSIS 3.1
Downstream analyzer
Spectrum & power measurement: DOCSIS 2.0 / DOCSIS 3.0 / DOCSIS 3.1
MER and BER: DOCSIS 3.0 / 3.1
Constellation: DOCSIS 3.0 / 3.1
DOCSIS bonding group
Cable Modem Emulation:32 / 8 channels
Dowstream Tuning: 32 channels
Upstream spectrum analyzer: From 5 to 200 MHz
DIGITAL CHANNEL ANALYZER
Frequency band: From 10 to 2700 MHz
BER, MER, Power: DVB-C/C2, DVB-T, QAM Annex A/B/C, ISDB-T, J.382
Constellation: DVB-C/C2, DVB-T, QAM Annex A/B/C, ISDB-T, J.382
SATELLITE CHANNEL ANALYZER
Frequency band: From 950 to 2150 MHz
BER, MER, Power: DVB-S, DVB-S2
Constellation: DVB-S, DVB-S2
LNB supply: 13 V / 18 V
OPTICAL FIBRE INPUT: INCLUDED
Optical power meter: From 1100 to 1700 nm
Wavelength band power range: -50 dBm to 4 dBm
Calibrated wavelengths: 1310, 1490 and 1550 nm
Optical to RF converter
RF band: From 45 to 2700 MHz
RF functions: Spectrum and Downstream analyzer
ANALOG CHANNEL ANALYZER
Frequency band: From 10 to 2700 MHz
Measurements: Level, C/N, CTB-CSO, HUM
Audio demodulation: FM
INPUTS AND OUTPUTS
RF input connector: F-type, replaceable
Voltmeter: AC/DC. From 5 to 1000 V
Optical fibre: SC-APC
Connectivity: Ethernet, USB, mini-USB
MAIN FUNCTIONS : Spectrum analyzer
DOCSIS Analyzer
Test generator
External cable modem
Upstream and Return path analyzer
SCAN / TILT
Voltmeter, RF power meter
TEST & GO T
Screenshots, Photo gallery
Datalogger
BATTERY: 7.2 V / 6.6 Ah Li-Ion
Battery operation time: > 2 h continuous use
External supply: 12 V
INCLUDED ACCESSORIES: DC power adaptor + Power cord
Input adapter (“F”/f to “F”/f) Input adapter (“F”/f to “F”/f)
Carrying bag, Transport case
Quick reference guide
MECHANICAL FEATURES
Dimensions :290 (W) x 185 (H) x 65 (D) mm
Weight: 1.6 kg
