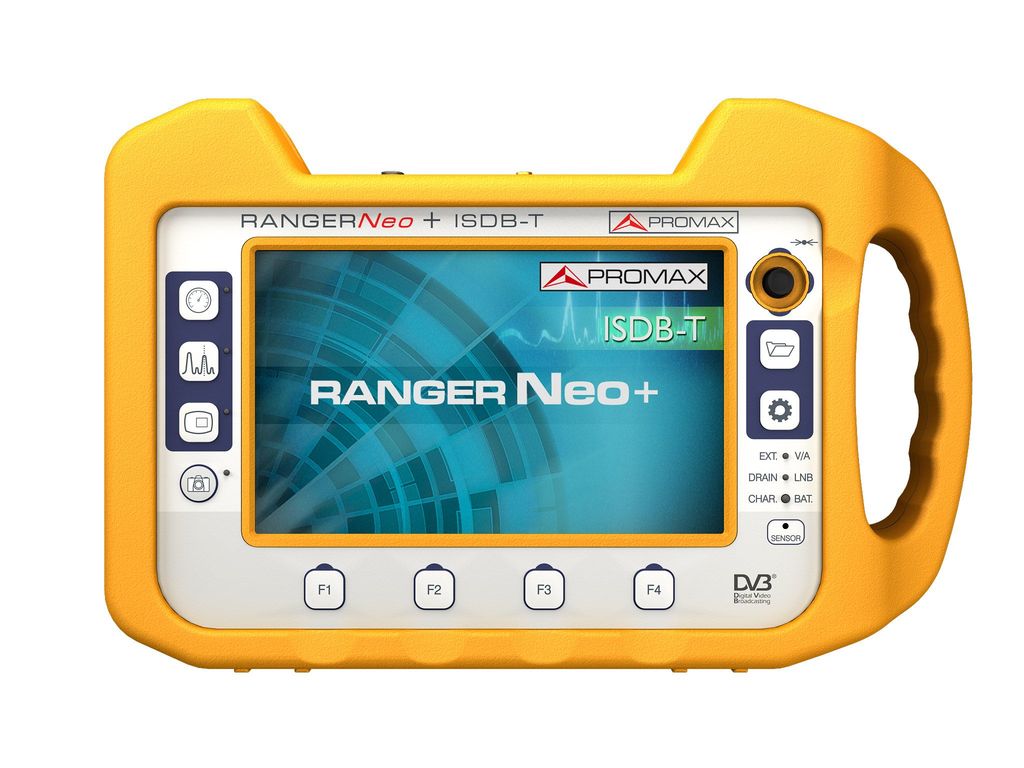

Promax RANGERNeo + ISDB-T Advanced multifunction field strength meter and spectrum analyzer

DIGITAL BROADCAST STANDARDS:

ISDB-T/Tb

QAM Annex B

DVB-C

DVB-S, DVB-S2, DVB-S2 multistream

ISDB-T/Tb

DSS, ACM/VCM/CCM

AUDIO CODECS: MPEG-1, MPEG-2, AAC, HE-AAC, Dolby Digital, Dolby Digital Plus

VIDEO CODECS: MPEG-2, MPEG-4 / H.264, HEVC / H.265

INPUTS AND OUTPUTS:- Universal RF input 75 Ω

- HDMI output

- IP input for remote control

- Analogue Video/Audio input

- 2xUSB (Type-A) for data transfering

FUNCTIONS:Constellation diagram

LTE ingress test

Dynamic echoes analysis

StealthID (instant identification of tuning parameters)

PLS (Physical Layer Scrambling)

Screenshots and Datalogger for

Service recording

Ultra fast spectrum analyzer (70 ms sweep time

measurement reports

Field strength measurement

Beacon-Flyaways for SNG & VSAT

Task planner

4K Frame grabber

Wideband LNB

MAX and MIN hold

WiFi 2.4 GHz

FM RDS radio measurement and decoding

LTE 1.8 GHz

OTT

ADDITIONAL FUNCTIONS:

Merogram

Spectrogram

Signal monitoring

Remote control (webControl

MER by carrier

Video/Audio Streaming

SCAN + TILT

Shoulder attenuation

SPECTRUM ANALYZER

Frequency Margin: From 5 - 1000 MHz (Terrestrial)

From 250 - 2500 MHz (Satellite)

Measurement range Span : From 10 - 130 dBµV

Full / 500 / 200 / 100 / 50 / 20 / 10 MHz

Resolution bandwidths:100, 200 kHz

1 MHz

MEASUREMENT MODE (please refer to STANDARDS section)

Frequency Margin: From 5 - 1000 MHz (Terrestrial)

: From 250 - 2350 MHz (Satellite)

DVB-T COFDM :Power (35 to 115 dBμV), CBER, VBER, MER, C/N, Link margin

DVB-T2 Base and Lite COFDM: Power (35 to 115 dBμV), CBER, C/N, LBER, MER, Link Margin, BCH ESR, LDP iterations, Wrong packets

DVB-C QAM: Power (45 to 115 dBμV), BER, MER, C/N, Link margin

DVB-C2 COFDM: Power (45 to 115 dBμV), CBER, MER, C/N, LBER, BCH ESR, LDP iterations, wrong packets

PAL, SECAM and NTSC: M, N, B, G, I, D, K and L

FM radio :Level measurement

DVB-S QPSK: Power (35 to 115 dBμV), CBER, MER, C/N, Link Margin

DVB-S2 QPSK, 8PSK, 16/32APSK: Power (35 to 115 dBμV), CBER, LBER, MER, C/N, BCH ESR, Wrong packets, Link Margin

DSS QPSK :Power (35 to 115 dBμV), CBER, VBER, MER, C/N, Link margin

INTERNAL STORAGE: 6 GB for measurement protocols, screenshots and transport stream recordings

PC CONNECTION (via ethernet interface): NetUpdate 4 (free software) + Free and automatic firmware updates + User customised channel plans+ Measurement reports and screenshots

GENERAL:Hybrid operation: Touch screen (7”) or conventional keyboard

DiSEqC 2.x generator (DiSEqC 1.2 commands implemented)

dCSS / SCD 2 (EN50607) and SATCR/SCD (EN50494)

BATTERY: > 4h(smart battery)

HARD CASE: Included

OPTION:

DAB, DAB+: Available

GPS Coverage Analysis: Available

Advanced DAB/DAB+ analyzer: -

Advanced FM radio analyzer: -

Rack assembly 19” 4U: 482 (W.) x 178 (H.) x 205 (D.) mm: Available

OPM + Optical-to-RF converter + WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input: Available
