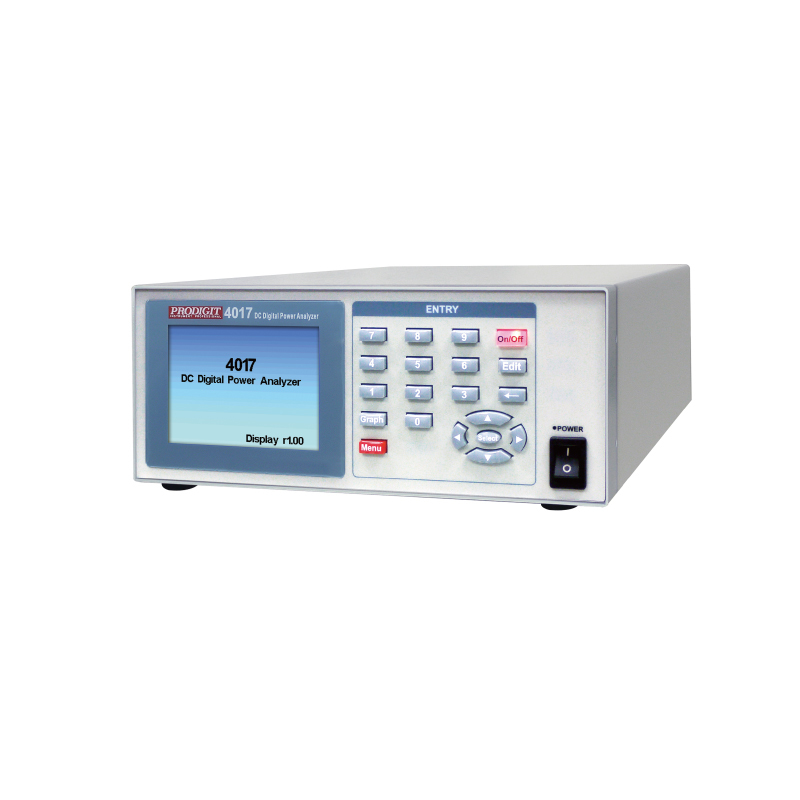

PRODIGIT 4017 DC Digital Power Analyzer (100Vp, 12Adc / 60Ap)
Voltage Ranges:
2.5 VDC / 0.1mV
5 VDC / 0.1mV
10 VDC / 1mV
25 VDC / 0.001V
50 VDC / 0.001V
100 VDC / 0.01V
18 Selectable Current Ranges:
0.375m ADC / 0.01uA
0.75m ADC / 0.1uA
1.5m ADC / 0.1uA
3.75m ADC / 0.1uA
7.5m ADC / 0.001mA
15mA ADC / 0.001mA
0.0375 ADC / 0.001mA
0.075 ADC / 0.01mA
0.15 ADC / 0.01mA
0.375 ADC / 0.01mA
0.75 ADC / 0.1mA
1.5 ADC / 0.1mA
3 ADC / 0.1mA
6 ADC / 0.1mA
12 ADC / 0.001A
15 Apeak/ 0.001A〈800ms〉
30 Apeak / 0.001A〈400ms〉
60 Apeak / 0.001A〈200ms〉
Input Range: 100 VDC / 6 ADC
Current resolution: 0.1uA
Minimum current range: 0.375mA
Display: 3.5-inch color LCD digital numeral and graphic (TFT) display
Data Logger mode:
- Up to 256 records for VDC, ADC, Watt measurements
- External PC for no-limit records q'ty for long-term quality
monitoring
- Built-in power switch to control
- Inrush Current and Voltage measurement
- Optional Interface:GPIB、RS232、USB、LAN
