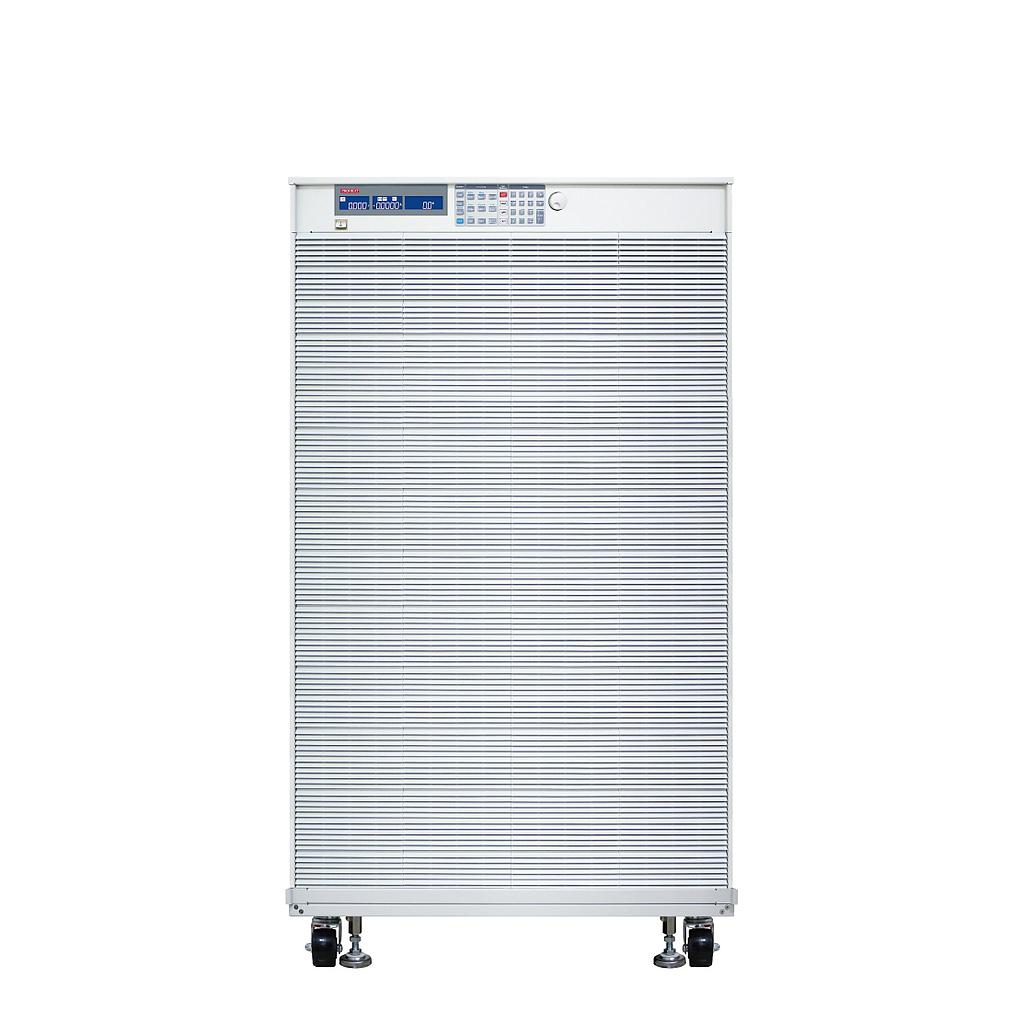

PRODIGIT 36360E ການໂຫຼດເອເລັກໂຕຣນິກ DC ພະລັງງານສູງທີ່ຫນາແຫນ້ນ (1250V, 300A, 60KW)
Power: 60KW
Current: 0~30A/0~300A
Voltage: 0~1250V
Protections:
Over Power Protection (OPP): 105%
Over Current Protection (OCP): 104%
Over Voltage Protection (OVP): 104%
Over Temp Protection (OTP): Yes
CC mode:
Range: 0~30A/0~300A
Resolution: 0.42mA/4.2mA
Accuracy: ±(0.1% of Setting + 0.2% of Range)
CR mode:
Range: 5004Ω ~ 4.17Ω/4.17Ω ~ 0.21Ω
Resolution: 3.9968μS/0.07mΩ
Accuracy: ±0.2%
CV modes:
Range: 1250V
Resolution: 20mV
Accuracy: ±0.05%
CP mode:
Range: 6000W/60000W
Resolution: 96mW/960mW
Accuracy: ±0.5%
Measurement mode (Load):
Voltage: 0 ~ 125V/250~1250V, ±0.025 %
Current : 0 ~ 26.25A/26.25~250A, ±0.1%
Power : 10000W/60000W, ±0.125%
Short circuit current: 300A
Dimension (HxWxD): 1508 x 853 x 766mm
Weight: 630kg
Optional interface: GPIB, RS296, USB, LAN
