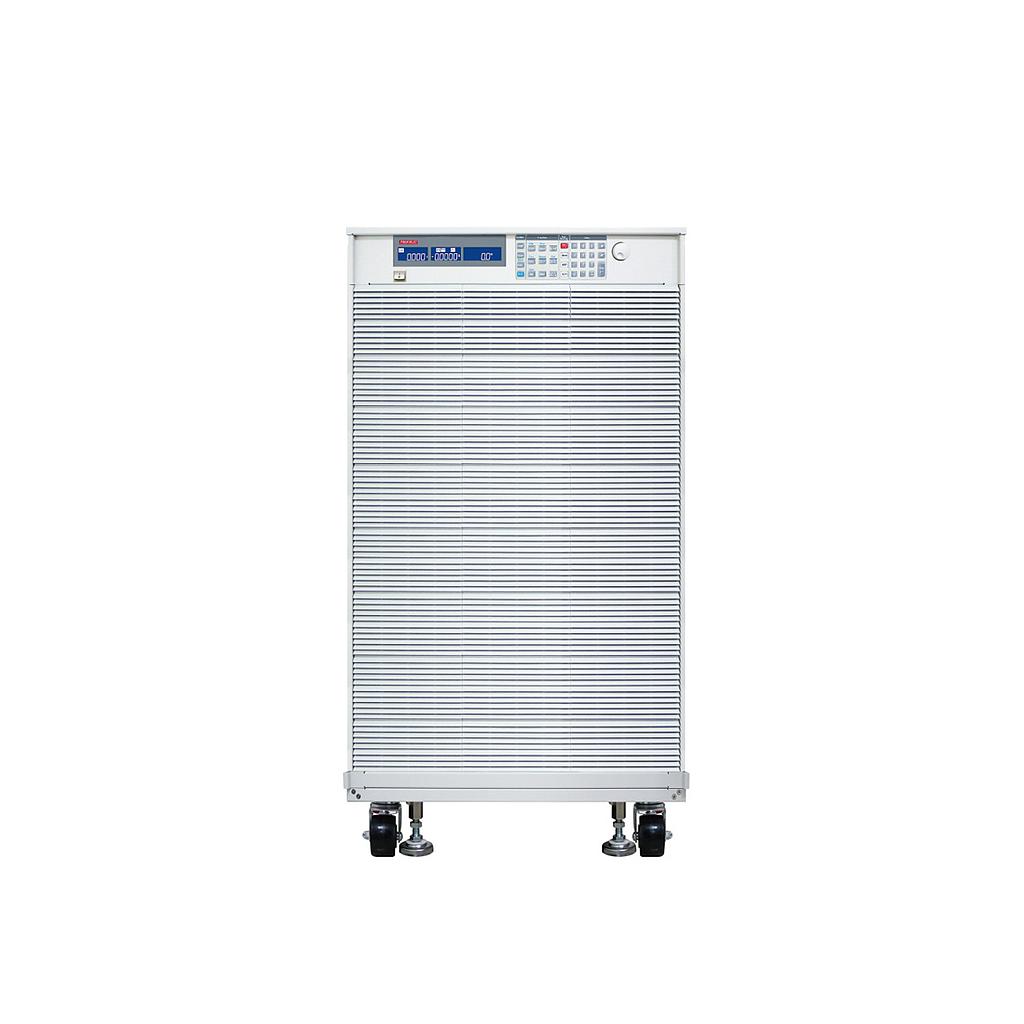

PRODIGIT 34330E ການໂຫຼດເອເລັກໂຕຣນິກ DC ພະລັງງານສູງທີ່ຫນາແຫນ້ນ (1250V, 150A, 30KW)
Power: 30KW
Current: 0 ~ 15A; 0 ~ 150A
Voltage: 0 ~ 1250V
Protections: Over Power Protection (OPP); Over Current Protection (OCP); Over Voltage Protection (OVP); Over Temp Protection (OTP)
Constant Current Mode Range: 15A; 150A
Constant Resistance Mode Range: 9996Ω~8.33Ω; 8.33Ω~0.417Ω
Constant Voltage Mode Range: 1250V
Constant Power Mode Range: 3000W; 30000W
Constant Voltage Mode + Constant Current Mode Range: 1250V; 150A
Constant Voltage Mode + Constant Power Mode Range: 1250V; 30000W
Dynamic Mode:
- Timing: 0.030~9.999 / 99.99 / 999.9 / 9999mS
- Current: 0~15A; 15~150A
Measurement
- Voltage Read Back Range (5 Digital): 0~300V; 300~1250V
- Current Read Back Range (5 Digital): 0~15A; 15~150A
- Power Read Back Range: 1000W; 30000W
Short Current: 150A
Power Consumption: 2800Wmax
Dimension (HxWxD): 1197x647x766mm
Weight: 340 kg
Temperature: 0~40℃
