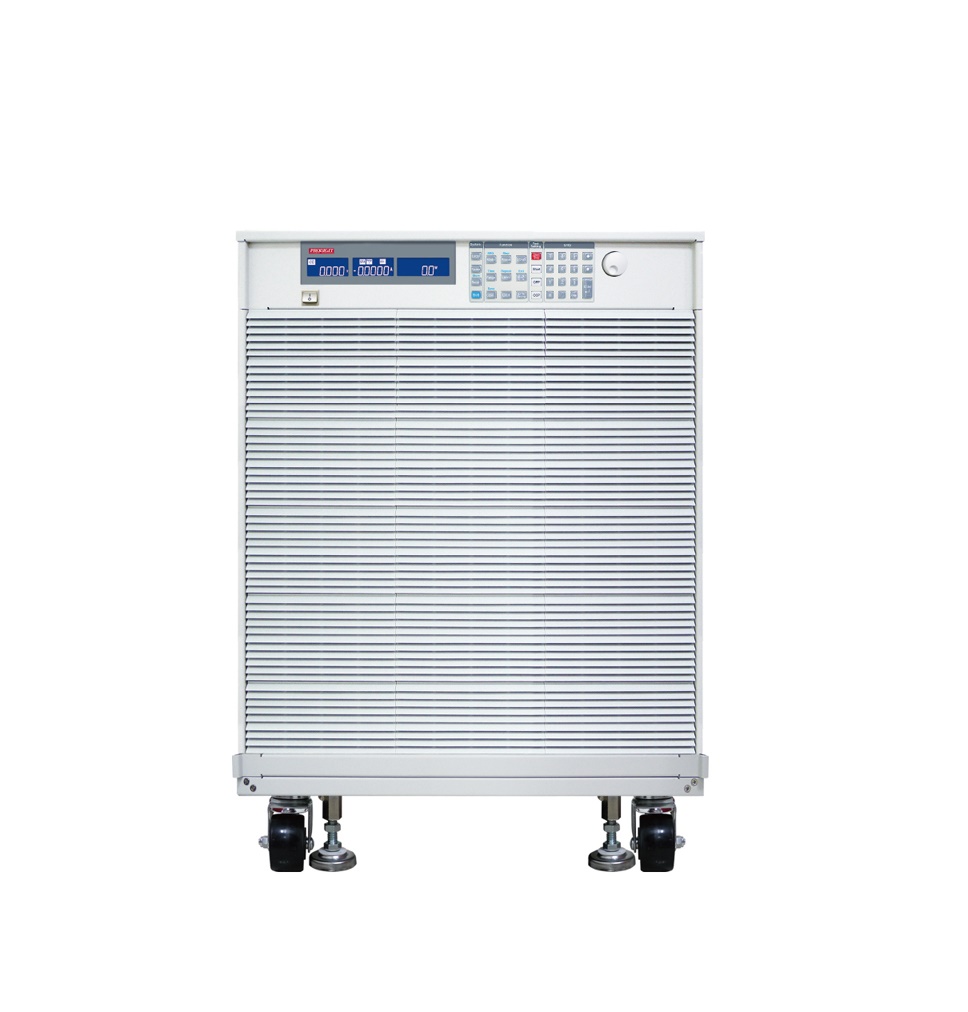

PRODIGIT 34320E ການໂຫຼດເອເລັກໂຕຣນິກ DC ພະລັງງານສູງທີ່ຫນາແຫນ້ນ (1250V, 100A, 20KW)
Power: 20KW
Current: 0 ~ 10A; 0 ~ 100A
Voltage: 0 ~ 1250V
Protections: Over Power Protection (OPP); Over Current Protection (OCP); Over Voltage Protection (OVP); Over Temp Protection (OTP)
Constant Current Mode Range: 10A; 100A
Constant Resistance Mode Range: 15000Ω~12.5Ω; 12.5Ω~0.627Ω
Constant Voltage Mode Range: 1250V
Constant Power Mode Range: 2000W; 20000W
Constant Voltage Mode + Constant Current Mode Range: 1250V; 100A
Constant Voltage Mode + Constant Power Mode Range: 1250V; 20000W
Dynamic Mode:
- Timing: 0.020~9.999 / 99.99 / 999.9 / 9999mS
- Current: 0~10A; 5~100A
Measurement
- Voltage Read Back Range (5 Digital): 0~200V; 200~1250V
- Current Read Back Range (5 Digital): 0~10A; 10~100A
- Power Read Back Range: 1000W; 20000W
Short Current: 100A
Power Consumption: 1900Wmax
Dimension (HxWxD): 885x647x766mm
Weight: 220 kg
Temperature: 0~40℃
