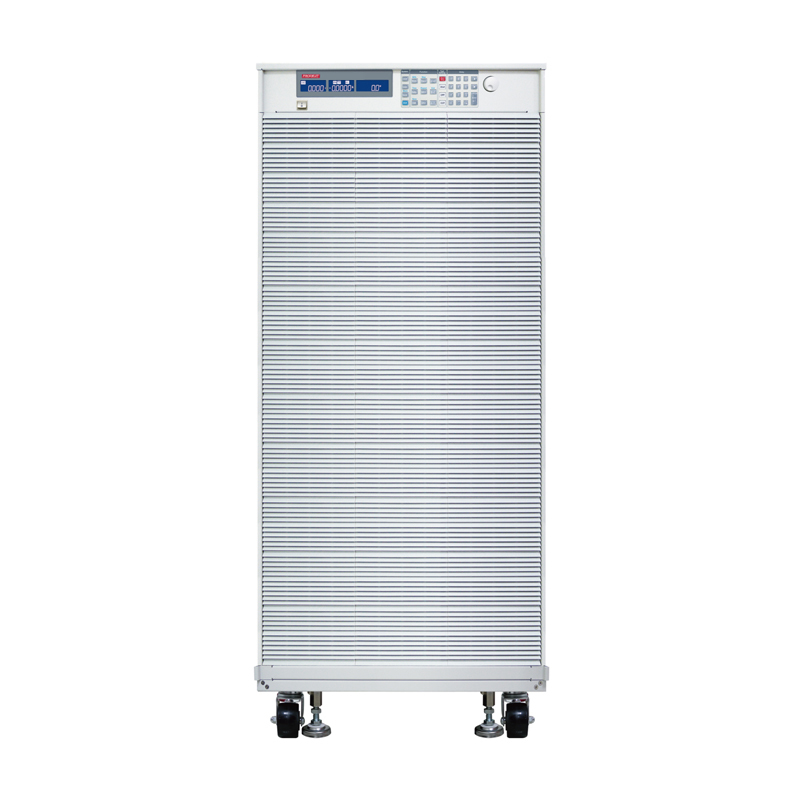

PRODIGIT 34140A ການໂຫຼດເອເລັກໂຕຣນິກ DC ພະລັງງານສູງທີ່ຫນາແຫນ້ນ (60V,1000A,40KW)
Power: 40KW
Current: 0~100A/0~1000A
Voltage: 0~60V
Min.Operation Voltage: 0.1V at 100A/0.7V at 1000A
Protections:
Over Power Protection (OPP): 105%
Over Current Protection (OCP): 104%
Over Voltage Protection (OVP): 105%
Over Temp Protection (OTP): Yes
CC mode:
Range: 0~100A/0~1000A
Resolution: 1.6mA/16mA
Accuracy: ±(0.1% of Setting + 0.2% of Range)
CR mode:
Range: 0.06~3600Ω/0.001~0.06Ω
Resolution: 277uS/0.001mΩ
Accuracy: ±0.2%
CV modes:
Range: 60V
Resolution: 1mV
Accuracy: ±0.05%
CP mode:
Range: 4000W/40000W
Resolution: 64mW/640mW
Accuracy: ±0.5%
Measurement mode (Load):
Voltage: 0 ~ 6V/6~60V, ±0.025%
Current : 0 ~ 100A/100~1000A, ±0.1%
Power : 10000W/40000W, ±0.125%
Short circuit current: 1000A
Dimension (HxWxD): 1509x647x766mm
Weight: 430 kg
Optional interface: GPIB, RS264, USB, LAN
