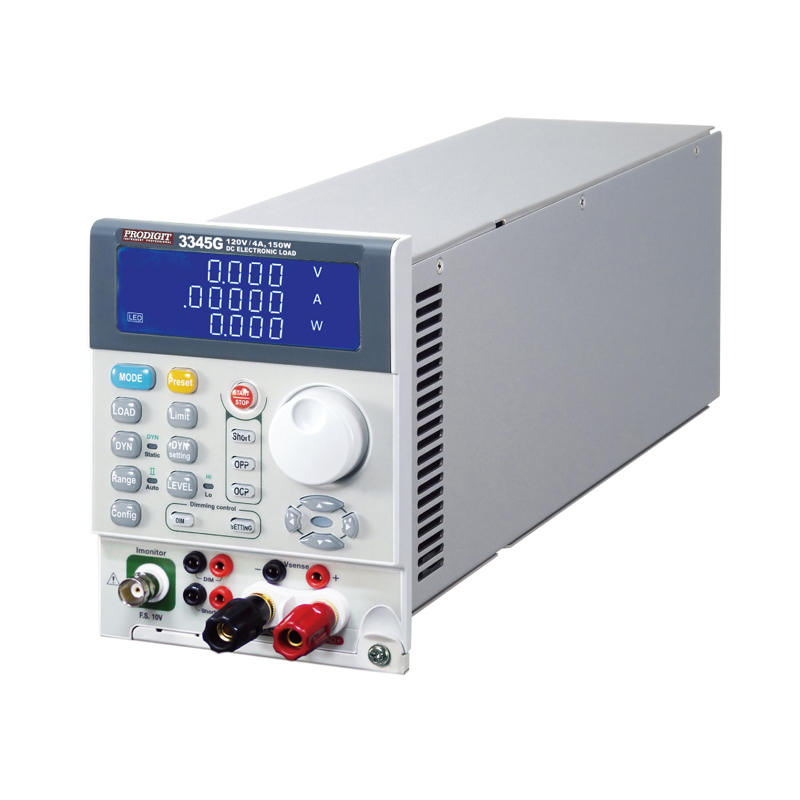

PRODIGIT 3345G LED DC Electronic Load Simulator (120V, 4A, 150W)
Power: 150W
Current: 0~1.2A; 0~4A
Voltage: 0~120V
Min.Operation Voltage: 3V at 4A
-CC mode
+Range: 0~1.2A; 0~4A
+Resolution: 0.02mA; 0.08mA
+Accuracy: 0.1%
-CR mode
+Range: CRL: 0.75Ω~750Ω (60V); CRH: 1.5Ω~1.5KΩ
+Resolution: 66.666µS; 33.333µS
+Accuracy: ±0.2%
-CV mode
+Range: 30V / 60V / 120V
+Resolution: 0.0005V / 0.001V / 0.002V
+Accuracy: ±0.05%
-CP mode
+Range: 0~150W
+Resolution: 0.0025W
+Accuracy: ±0.5%.
-LED mode
+Vo Voltage range: LEDL:30V/LEDM:60V/LEDH:120V
+Rd Resistance range:
LEDL:0.625~0.75KΩ at Vo-Vd=0~3V
LEDL:6.25~7.5KΩ at Vo-Vd=3~30V
LEDM:1.25~1.5KΩ at Vo-Vd=0~6V
LEDM:12.5~15KΩ at Vo-Vd=6~60V
LEDH:2.5~3KΩ at Vo-Vd=0~12V
LEDH:25~30KΩ at Vo-Vd=12~120V
+Resolution: 16 bits
+Accuracy: Vd: ±(0.05% of setting + 0.1% of range); Rd: ±(0.05% of setting + 0.1% of range)
- Option (necessary) : 3302F- single channel mainframe ; 3305F- two channels mainframe ; 3300F- four channels mainframe
- Optional interface: GPIB, RS232, USB, LAN
