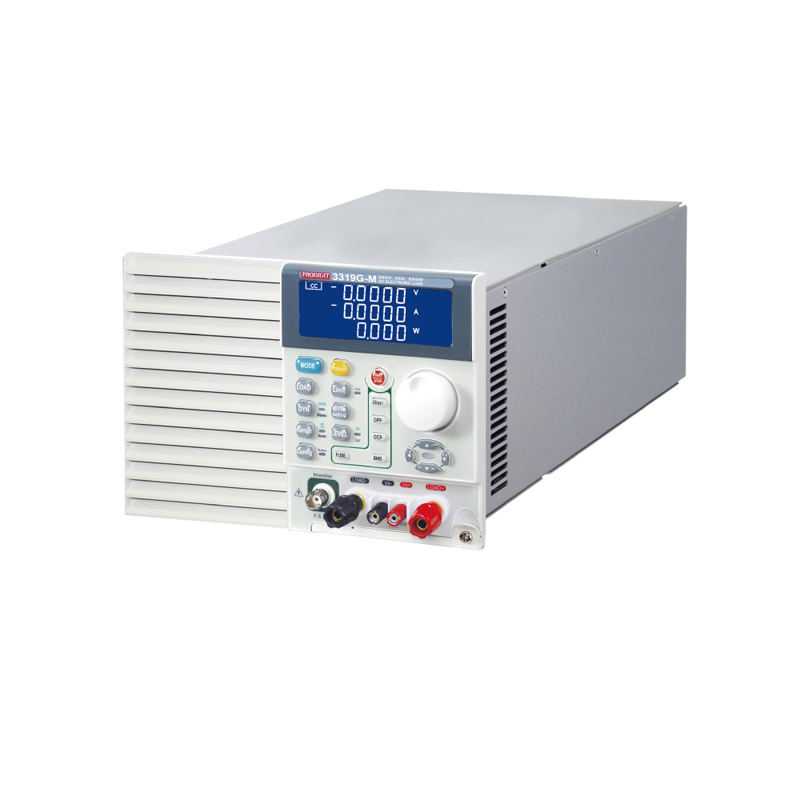

PRODIGIT 3319G-M DC Electronic Load (40A, 500V, 800W)
Power: 800W
Current: 40A
Voltage: 500V
Over Power Protection(OPP): 105%
Over Current Protection(OCP): 105%
Over Voltage Protection(OVP): 105%
Over Temp Protection(OTP): YES
Constant Current Mode:
Range: 0~40.2A
Resolution: 0.67mA
Accuracy: ± 0.1% of ( setting + Range)
Constant Resistance Mode
Range: 0.15Ω ~ 15Ω
Resolution: 0.25mΩ
Accuracy: ± 0.2% of (Setting + Range)
Constant Voltage Mode
Range: 0 ~ 500V
Resolution: 0.01V
Accuracy: ± 0.05% of (Setting + Range)
Constant Power Mode
Range: 0 ~ 800.4W
Resolution: 13.34mW
Accuracy: ± 0.5% of (Setting + Range)
Constant Current + Constant Voltage Mode
Range: 500V/40A
Resolution: 0.001V, 0.67mA
Accuracy: ± 1.0% of (Setting + Range)
Constant Power+ Constant Voltage Mode:
Range: 500V, 800W
Resolution: 0.01V, 13.34mW
Accuracy: ± 1.0% of (Setting + Range)
Dimensions: 143 x 216.4 x 418.8 mm
Weight: 7kg
Option: GPIB Card, RS232 Card, USB Card, LAN Card
