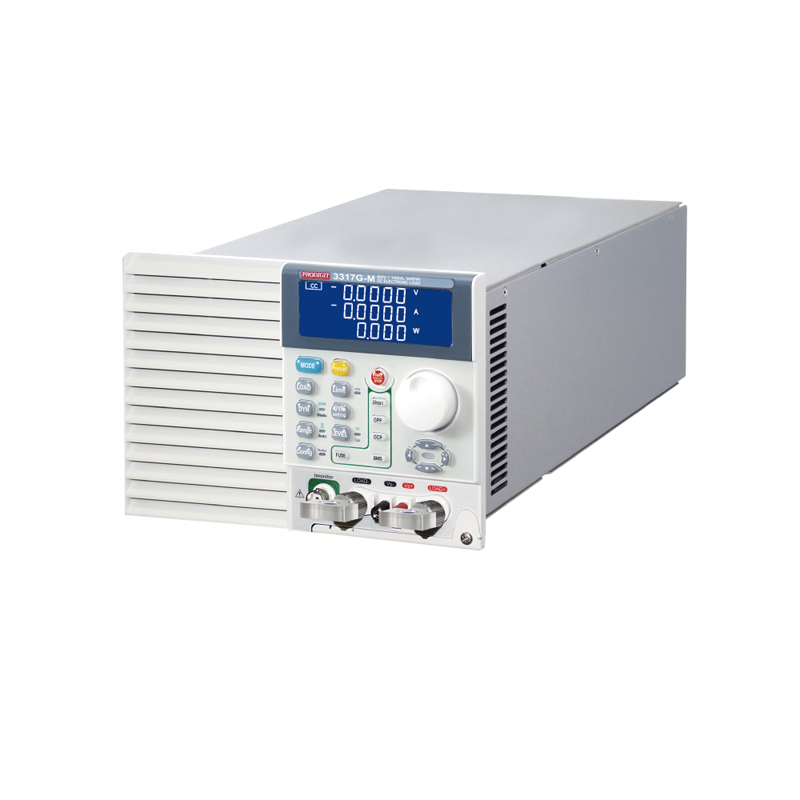

PRODIGIT 3317G-M DC Electronic Load (160A, 80V, 800W)
Power: 800W
Current: 160A
Voltage: 80V
Over Power Protection(OPP): 105%
Over Current Protection(OCP): 105%
Over Voltage Protection(OVP): 105%
Over Temp Protection(OTP): YES
Constant Current Mode:
Range: 0 ~ 160.2A
Resolution: 26.7mA
Accuracy: ± 0.1% of ( setting + Range)
Constant Resistance Mode
Range: 0.00416Ω ~ 0.5Ω
Resolution: 0.0083mΩ
Accuracy: ± 0.2% of (Setting + Range)
Constant Voltage Mode
Range: 0 ~ 80.4V
Resolution: 0.00134V
Accuracy: ± 0.05% of (Setting + Range)
Constant Power Mode
Range: 0 ~ 800.4W
Resolution: 13.34mW
Accuracy: ± 0.5% of (Setting + Range)
Constant Current + Constant Voltage Mode
Range 80V/ 160A
Resolution 0.001V/0.34mA
Accuracy: ± 1.0% of (Setting + Range)
Constant Power+ Constant Voltage Mode:
Range: 80V, 800W
Resolution: 0.00134V, 13.34mW
Accuracy: ± 1.0% of (Setting + Range)
Dimensions: 143 x 216.4 x 418.8 mm
Weight: 7kg
Option: GPIB Card, RS232 Card, USB Card, LAN Card
