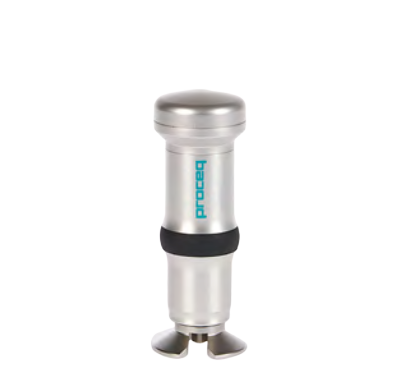

Proceq Equotip Portable Rockwell Probe

For Equotip 550 or PC
Dimensions: 112.5 x o 42 mm (4.4 x o 1.6 inches)
Weight: 260 g (9.17 oz)
Power supply: Via USB (5 V, max. 100 mA)
Measuring range: 0-100 µm; 19-70 HRC; 34-1080 HV
Measuring accuracy: 1.5 HRC according to DIN 50157
Resolution: 0.1 µm; 0.1 HRC; 1 HV
Test direction: Any direction (no correction required)
Test loads: 10 N / 50 N (probe 50 N)
Diamond indenter: Angle 100.0° +/- 0.5°
