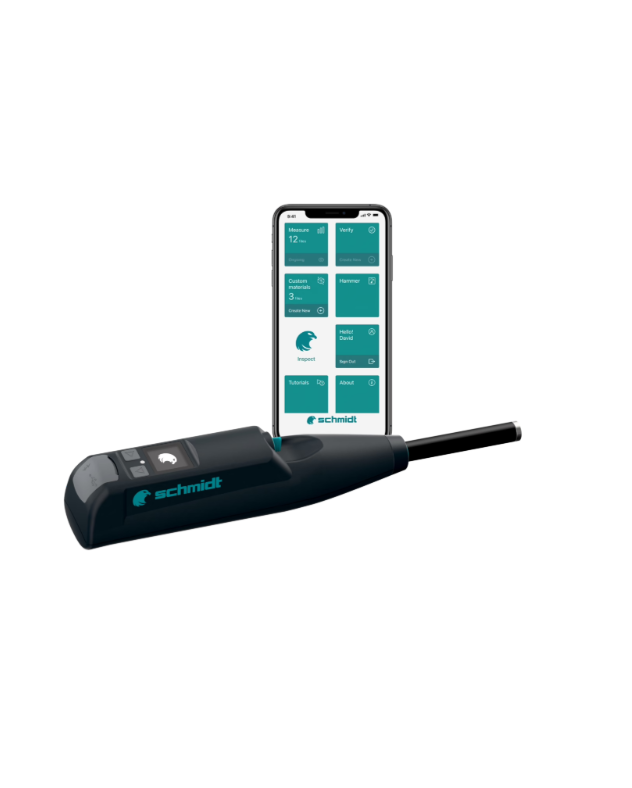

PROCEQ PS8000 ເຄື່ອງທົດສອບຄວາມແຂງຂອງຟິມ ແລະ ມ້ວນເຈ້ຍ (~7 – 80 R)
Paper Schmidt App
Mobile App: Proceq Paper Schmidt App
App Display
Any compatible Apple® iOS device
Any supported Android™ device
App Workflow Features
Voice read-out of each impact (only on iOS®)
Logbook with geolocation, audio, image and
text annotations
Series statistics
Generate roll profiles
ID Barcode and QR code scanner
Set min/max values
Single and multiple roll series reporting: CSV
App Verification Features Software-assisted verification on an anvil
PC Software
Paperlink 2 software runs on Windows 7 or newer
PC Workflow features
Download and manage roll data
Instant view on measurement data span
Set up and change min/max limits
Display statistics
Insert measurement comments
Export data to CSV file
Export PNG images
Import of CSV exported from mobile App
Instrument
Measurement: Roll profile measurement (series of rebound
value)
Technology: Optical Rebound Velocity Quotient
Key Features
Impact angle independent
Displays the impacts on-screen as you work
Set min/max values
Connect to PC, mobile app and portable printer
Impact Energy: 0.735 Nm
Measurement range: ~7-80 R
Memory: Instrument memory > 20’000 impacts
Display: Analog & backlit digital (100 x 100 pixels, graphic)
Connectivity: Bluetooth® LE, USB for charging, updates and wired data transfer to PC
Standards compliance
TAPPI T834
TAPPI TIP 1004-01
Consisting of: Paper Schmidt PS8000 hammer, rechargeable AAA battery, Micro-USB cable, carrying strap, documentation, carrying bag.
