Proceq DY-206 Pull Off Tester (6 kN, 1349 lbf )

Application
+ The pull off tester measures the adhesive strength of applied coatings e.g. plastic or concrete coatings, mortars, plasters, bituminous coats
+ Determining the surface strength of concrete and other materials
+ The pull off tester is ideal for the evaluation of tensile strength in concrete renovation

Technical
Calibration accuracy: EN ISO 7500-1 Class 1 (±1% from 20% of max. Force)
Memory capacity: 100 measurements
Battery capacity: 1500 mAh, 3.7V (min. 80 measurements)
Charger connection: USB type A (5V, 500mA)
Weight: 4.5 kg
Dimensions of housing: 109 x 240 x 205.5 mm
Operating temperature: -10 to 50°C (14 to 122°F)
Storage temperature: -10 to 70°C (14 to 158°F)
Display: in N/mm2 based on dia. 50 mm test disc
Tensile force: max. 4400 N (990 lbf)
Tensile strength: 2.2 N/mm2 (320 psi)
Accuracy: < 3 %
Tensile stroke: 20 mm (0.79 in.)
Total weight: 2.8 kg (6 lbs; 3 oz)

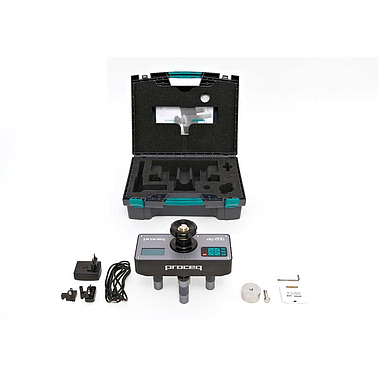

Accessories: DY-206 Pull-off tester 6 kN (1349 lbf) including: battery pack, battery charger with USB-cable, test disc aluminium Ø 50mm/M10, draw bolt M10, torx screwdriver, software, operating instructions, calibration certificate and carrying case
