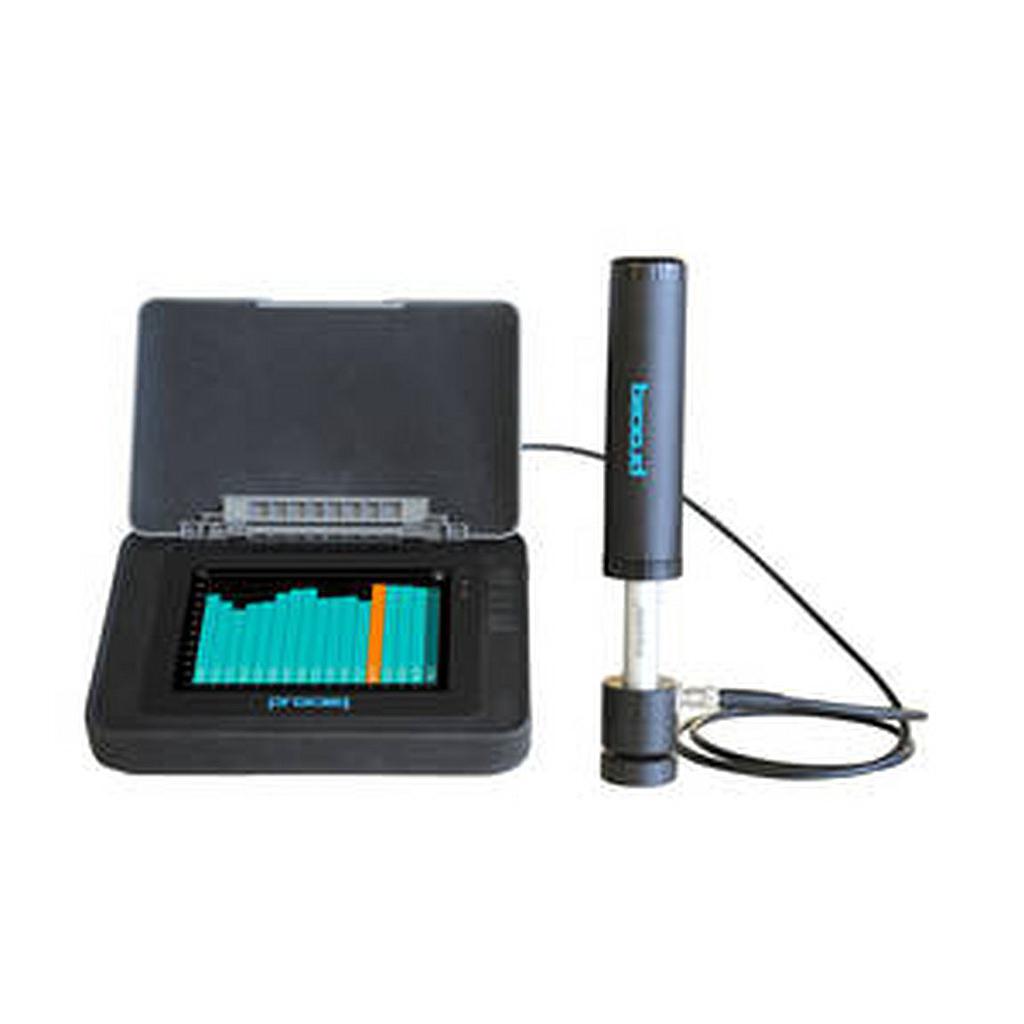

Proceq Equotip 550 Leeb U Roll Hardness tester

Name: Proceq Equotip 550 Leeb U Roll Hardness tester
Brand: PROCEQ

ຜູ້ຜະລິດPROCEQ(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

ModelEquotip 550 Leeb U

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

The Equotip 550 Leeb U is the direct successor of the highly appreciated Parotester. It enables the user to quickly and precisely diagnose roll imperfections, hardness inconsistencies and uneven winding, thereby preventing problems for printing and converting operations.

Portable and lightweight, the Equotip 550 Leeb U is perfect for roll hardness testing in the warehouse or on the production floor, providing an immediate visual assessment of the hardness profile.

The new generation Equotip Touchscreen Unit offers an elaborate interface designed by industry experts for increased efficiency and an exceptional user experience. The enhanced software provides an interactive wizard, automatic verification processes, personalization options and custom report functions. The Touchscreen Unit is compatible with existing Parotester impact devices.

The full color display facilitates the best possible measuring experience and analysis of the measured data. The specially designed housing optimizes the on-site usage of the device in harsh environments.

Equotip 550 Leeb U Impact Device

Impact energy: 200 Nmm
Native scale: HLU (directly comparable to LU)
Extremely durable
Support ring: Large crown for a safe and stable impact on curved surfaces
Loading tube: Easy handling with loading and release in one smooth movement

Equotip Touchscreen Unit

Downward compatibility: Compatible with the existing Parotester impact devices
Supporting barcode reader for fast, easy and reliable roll identification
Guiding wizard: Predefined workflow to increase process reliability and to improve measurement precision
Interactive guides: On-screen notifications to obtain the most relevant settings for your application
Custom reports: Modular generator allows customized measurement reports
PC-software included free of charge
Housing specially designed to be used on-site in harsh environments (IP 54), including carrying strap, integrated stand and sunshield cover
High resolution color display
Battery lifetime of > 8h
8 GB Flash memory (> 1.000.000 measurements)
Dual core processor supporting diverse communication and peripheral interfaces: Probe Connector, USB Host, USB Device and Ethernet

Roll profiling and roll hardness testing on:

Large paper rolls
Midsize paper rolls
Small paper rolls
Thin film rolls
Foil rolls
Coated rolls

Equotip Leeb Impact Devices
Measuring accuracy	± 6 HLU (for Leeb U)
Impact energy	200.0 Nmm for U probe
Mass of impact body	26.0 g (0.92 ounces) for U probe
Ball indenter	Hardened Steel, 50.0 mm (1.97”) diameter for U probe
Instrument:
Display	7” color display 800x480 pixels
Memory	Internal 8 GB Flash memory (up to 1.000.000 measurements)
Regional settings	Metric and Imperial units, multi-language and timezone supported
Battery	Lithium Polymer, 3.6 V, 14.0 Ah
Battery lifetime	> 8h (in standard operating mode)
Power input	12 V +/-25 % / 1.5 A
Weight (of display device)	About 1525 g (incl. Battery)
Dimensions	250 x 162 x 62 mm
Max. altitude	2500 m above sea level
Humidity	< 95 % RH, non condensing
Operating temperature	0°C to 30°C (32 to 86°F) (Charging, running instrument) 0°C to 40°C (32 to 104°F) (Charging, instrument is off) -10°C to 50°C (14 to 122°F) (Non-charging)
Environment	Suitable for indoor & outdoor use
IP classification	IP 54
Pollution degree	2
Installation category	2
