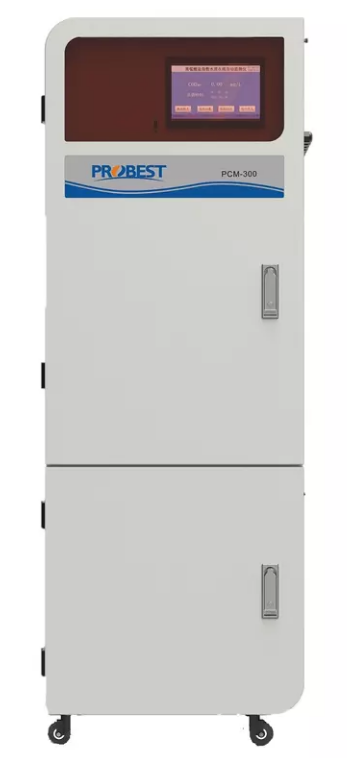

Probest PCM300-TP ນ້ຳຄຸນນະພາບຟອສໂຟຣັດທັງໝົດອອນໄລນ (0 – 100 mg/L)

Range: 0-100mg/L (Customizable)

Accuracy: ≤±5% or≤±0.005mg/L(Bigger One)

Repeatability: ≤2%

Resolution: 0.0001mg/L (2 to 4 decimal places can be set)

Display: 7 inch display

Measurement mode: Continuous mode, periodic mode (adjustable from 1 hour to 30 days), fixed  point mode, controlled mode, and manual mode are optional

Calibration mode Manual calibration or automatic calibration

Maintenance cycle: General once a month

power supply: 220VAC±10%,50HZ±10%

Output: 4-20mA output

Communication method: MODBUS RS-232,RS-485

Environmental conditions: Temperature adjustable room, recommended temperature +5-40℃ Humidity, ≤85% (no condensation)

Size: 520*390*1475mm

Datasheet

Application

Total phosphorus online monitoring of drinking water;

Total phosphorus online monitoring of surface water;

Online monitoring of total phosphorus in inlet and outlet of municipal wastewater, the pollution discharge outlet;

Online monitoring of total phosphorus in industrial wastewater outlet
