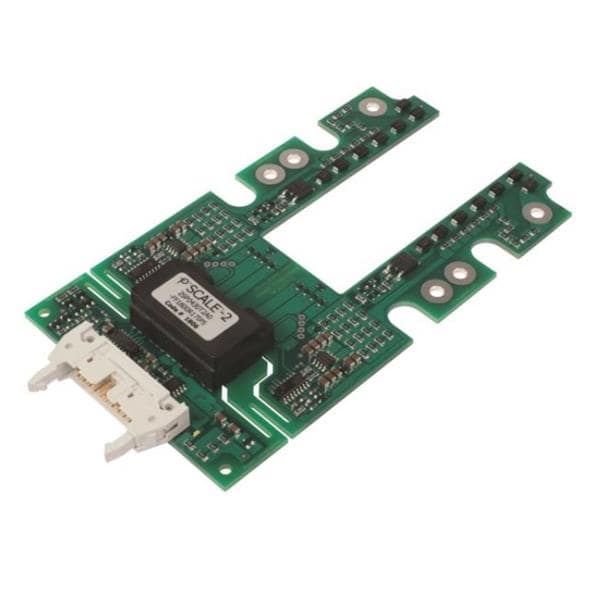

Power Integrations 2SP0430T2A0C-FF1500R17IP5 Half-Bridge ONLY ສໍາລັບ Infineon FF1500R17IP5 ໂມດູນຄອດຄອນຟອມມອລ

Width: 89 mm

Height: 17.2 mm

Length: 162 mm

Output Power: 2 W

Configuration: Inverting

Mounting Style: Through Hole

Output Current: 30 A

Output Voltage: 25.9 V

Number of Drivers: 2 Driver

Number of Outputs: 2 Output

Input Voltage - Max: 15.5 V

Input Voltage - Min: 14.5 V

Switching Frequency: 10 kHz

Supply Voltage - Max: 15.5 V

Supply Voltage - Min: 14.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
