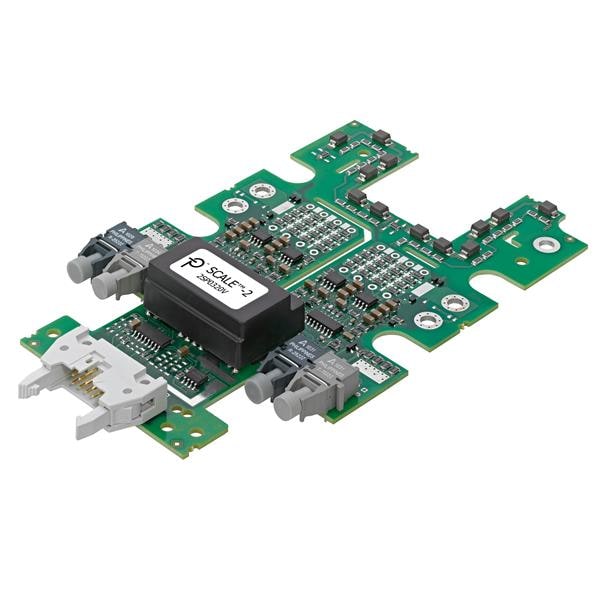

Power Integrations 2SP0320V2A0C-FF1200R12IE5 ຄວບຄຸມ IGBT Plug-and-Play Gate Driver, SCALE-2, ອິນເຕີເຟສໃສ່ເສັ້ນແສງມີການເຊື່ອມຕໍ່ຫຼາຍຮູບແບບ

Width: 94 mm

Height: 18 mm

Length: 150 mm

Fall Time: 25 ns

Rise Time: 7 ns

Output Power: 3 W

Output Current: 20 A

Input Voltage - Max: 15.5 V

Input Voltage - Min: 14.5 V

Switching Frequency: 20 kHz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Collector- Emitter Voltage VCEO Max: 1.2 kV
