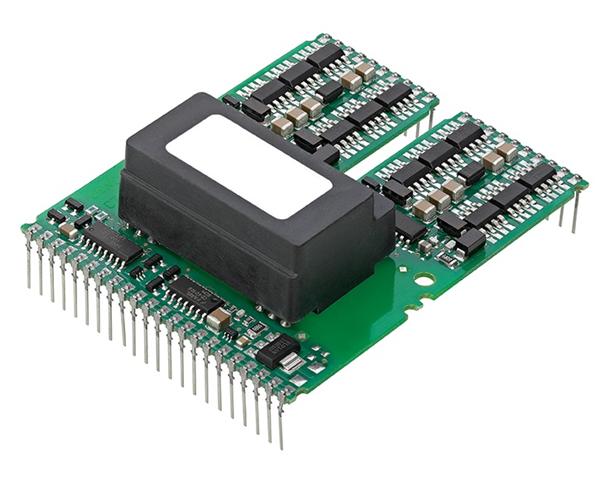

Power Integrations 2SD315AI-33 ຄວບຄຸມ IGBT ຮູບແບບ Half-Bridge 2-Ch SCALE-1

Fall Time: 130 ns

Rise Time: 160 ns

Output Power: 6 W

Configuration: Inverting

Mounting Style: Through Hole

Output Current: 15 A

Number of Drivers: 2 Driver

Number of Outputs: 2 Output

Input Voltage - Max: 15.5 V

Input Voltage - Min: 14.5 V

Switching Frequency: 100 kHz

Supply Voltage - Max: 14 V

Supply Voltage - Min: 16 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Collector- Emitter Voltage VCEO Max: 3.3 kV
