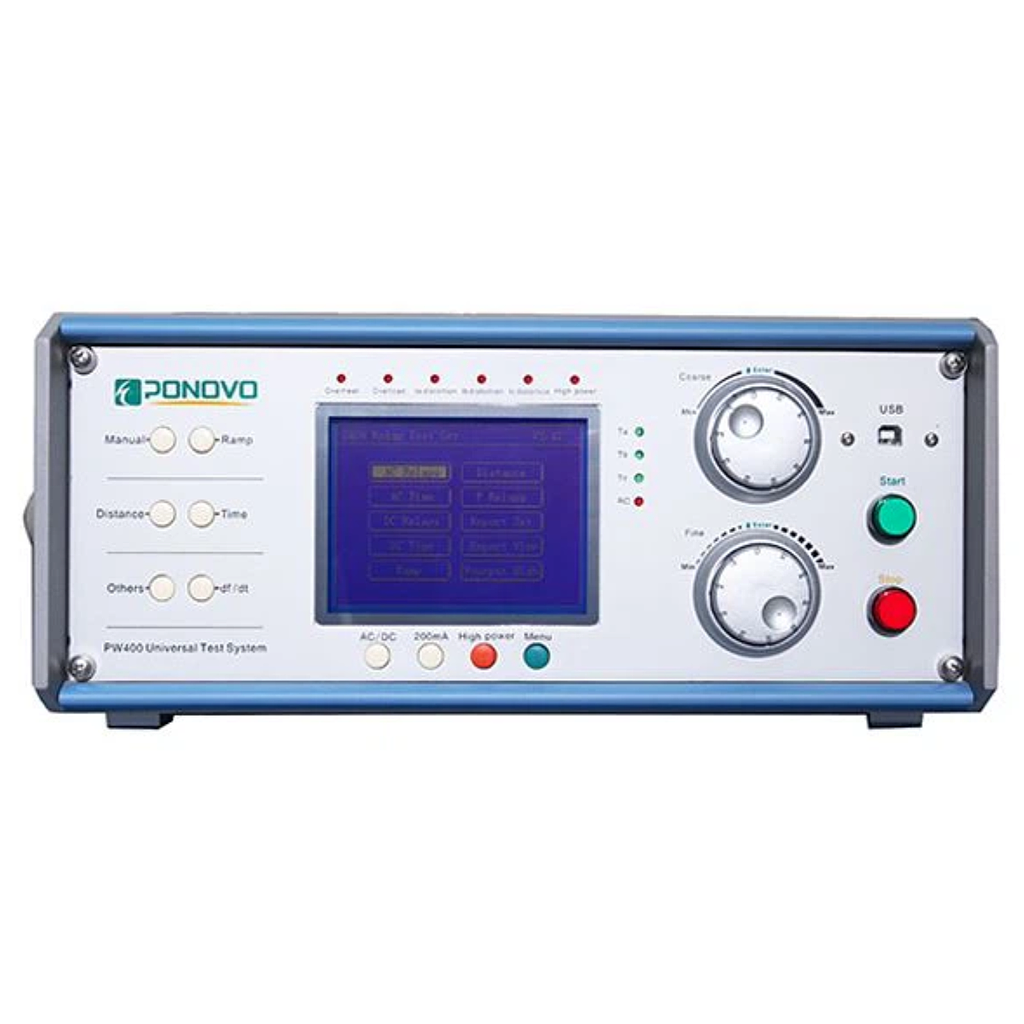

Ponovo S40A ຊຸດທົດສອບ Relay ປ້ອງກັນ
Voltage generators
Setting range
3‐phase ac(L‐N): 3×0~300V
1‐phase ac(L‐L): 1×0~600V
dc (L‐N): 3×0~300V
Power
3‐phase ac(L‐N): 3×85VA at 300V
1‐phase ac(L‐L): 1×170VA at 600V (two generators in series)
dc (L‐N): 3×100W at ±300 V
Accuracy: <0.16% rd.+0.04% rg. guar.; <0.08% rd.+0.02% rg. typ.
Ranges: 300V
Resolution: 10mV
Distortion: 0.1%
Current generators
Setting range
3‐phase ac(L‐N): 3×0~40A
1‐phase ac(L‐N): 1×0~120A
dc (L‐N): 1×0~10A
Resolution: 10mA
Power
3‐phase ac(L‐N): 3×65VA at 5A, 3×400VA at 40A
dc (L‐N): 90W at 10A
Accuracy: <0.16% rd.+0.04% rg. guar.; <0.08% rd.+0.02% rg. typ.
Frequency
Range: DC 40 to 100Hz
Accuracy: 0.002%
Resolution: 0.01Hz
Phase
Angle range: 0°~+360°
Accuracy: 0.2°
Resolution: 0.1°
4 binary inputs, 1 binary output
Power supply
Nominal input voltage: 110~240Vac
Permissible input voltage: 90~260Vac
Nominal frequency: 50/60Hz
Permissible frequency: 45~65Hz
Operation temperature: 0~+50°C
Storage temperature: ‐25~+70°C
Relative humidity: 5~95% non‐condensing
Weight: 18kg
Dimensions (WxHxD): 360mm×157mm×367mm
