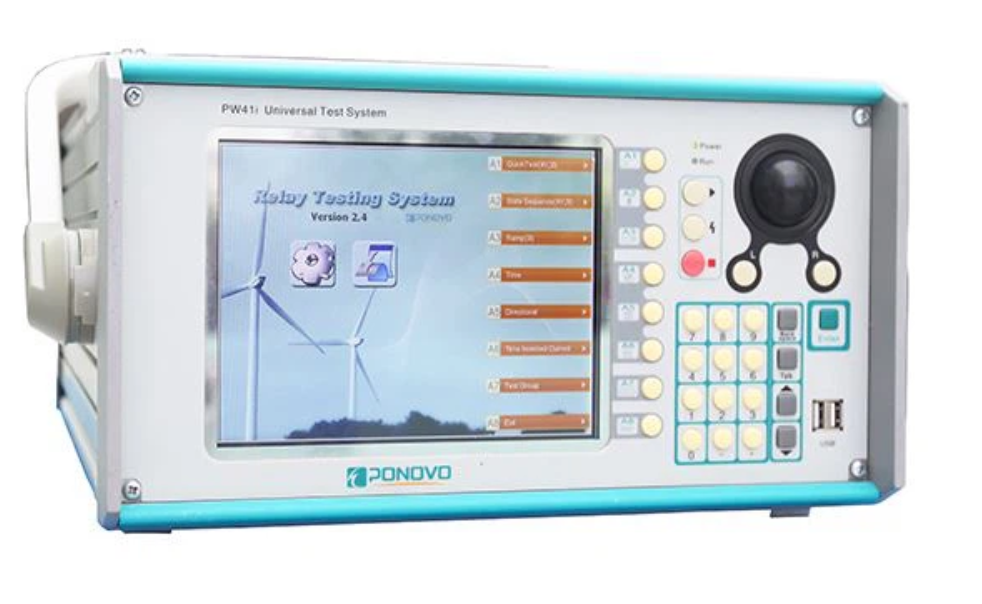

Ponovo PW41i‐advanced version ຊຸດທົດສອບ Relay ປ້ອງກັນ
Voltage generators
Setting range
4‐phase ac(L‐N): 4×0~300V
1‐phase ac(L‐L): 1×0~600V
dc (L‐N): 4×±0~300V
dc (L‐L): 1×±0~600V
Power
4‐phase ac(L‐N): 4×75VA at 300V typ.
3‐phase ac(L‐L): 3×100VA at 300V typ.
1‐phase ac(L‐L): 1×200VA at 600V typ.
dc (L‐N): 4×100W at ±300 V
Ranges: 300V
Resolution: 10mV
Distortion: 0.1%
Current generators
Setting range
3‐phase ac(L‐N): 3×0~40A
1‐phase ac(3L‐N): 1×0~120A
dc (3L‐N): 1×±0~60A
Power
3‐phase ac(L‐N): 3×65VA at 5A; 3×400VA at 40A
dc (3L‐N): 700W at 60A
Phase
Angle range: 0~360°
Accuracy: 0.2°
Resolution: 0.001°
8 binary inputs, 4 binary outputs
Power supply
Nominal input voltage: 110~240Vac
Permissible input voltage: 90~260Vac
Nominal frequency: 50/60Hz
Permissible frequency: 45~65Hz
Operation temperature: 0~+50°C
Storage temperature: ‐25~+70°C
Relative humidity: 5~95% non‐condensing
Weight: 23kg
Dimensions (WxHxD): 364mm×200mm×475mm
