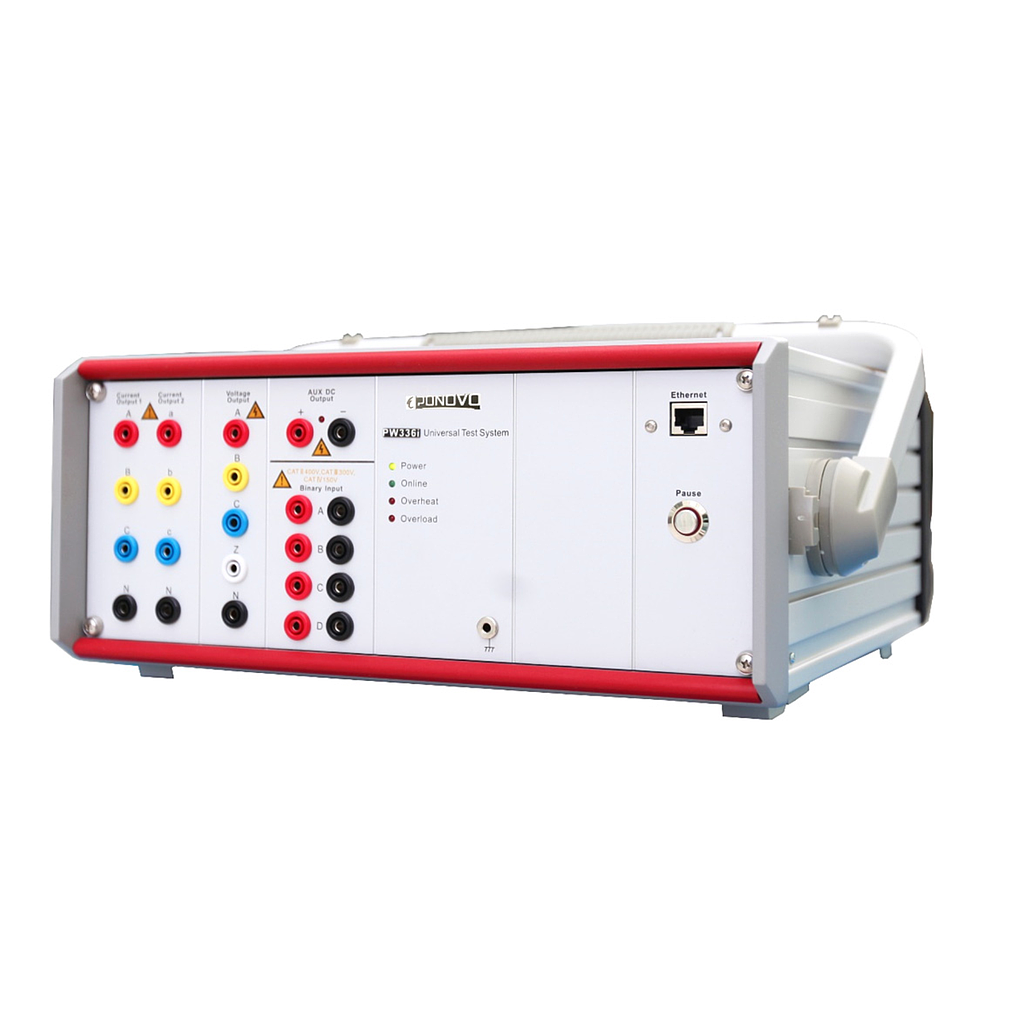

Ponovo PW336i ເຄື່ອງທົດສອບ Relay ປ້ອງກັນ
Voltage generators
Setting range
4‐phase ac(L‐N): 4×0~150V
1‐phase ac(L‐L): 1×0~300V
dc (L‐N): 4×±0~150V
dc (L‐L): 1×±0~300V
Power
4‐phase ac(L‐N): 4×45VA at 150V
3‐phase ac(L‐N): 3×60VA at 150V
1‐phase ac(L‐L): 1 × 100VA at 300V
dc (L‐N): 4×40W at 150 V
Accuracy: error < 0.08 % rd.+0.02 % rg. guar./ error < 0.04 % rd.+0.01 % rg. typ.
Ranges: 150V
Resolution: 5mV for 150Vac
Distortion: < 0.05 % typ., (< 0.1 % guar.)
Current generators
Setting range
6‐phase ac(L‐N): 6×0~15A
3‐phase ac(2L‐N): 3×0~30A
1‐phase ac(6L‐N): 1×0~90A
dc (L‐N): 6×±0~15A
dc (6L‐N): 1×±0~90A
Power
6‐phase ac(L‐N): 6×150VA at 15A
3‐phase ac(2L‐N): 3×240VA at 30A
1‐phase ac(6L‐N): 1×450VA at 90A
1‐phase ac(L‐L): 1×450VA at 30A
Max compliance
Voltage (L‐N)(L‐L): 15Vpk/30Vpk
dc (L‐N): 6×100W at 15A
dc (6L‐N): 1×480W at 90A
Accuracy: error < 0.15 % rd.+0.05 % rg. guar./ error < 0.05 % rd.+0.02 % rg. typ.
Ranges: 15A or 30A
Resolution: 1mA
Distortion: < 0.05 % typ., (< 0.1 % guar.)
Power supply
Nominal input voltage: 110~240Vac
Permissible input voltage: 90~260Vac
Nominal frequency: 50/60Hz
Permissible frequency: 45~65Hz
Operation temperature: 0~+50°C
Storage temperature: ‐25~+70°C
Relative humidity: 5~95% non‐condensing
Weight: 20kg
Dimensions (W x H x D): 360mm ×157mm×367mm
8 binary inputs, 4 binary outputs
