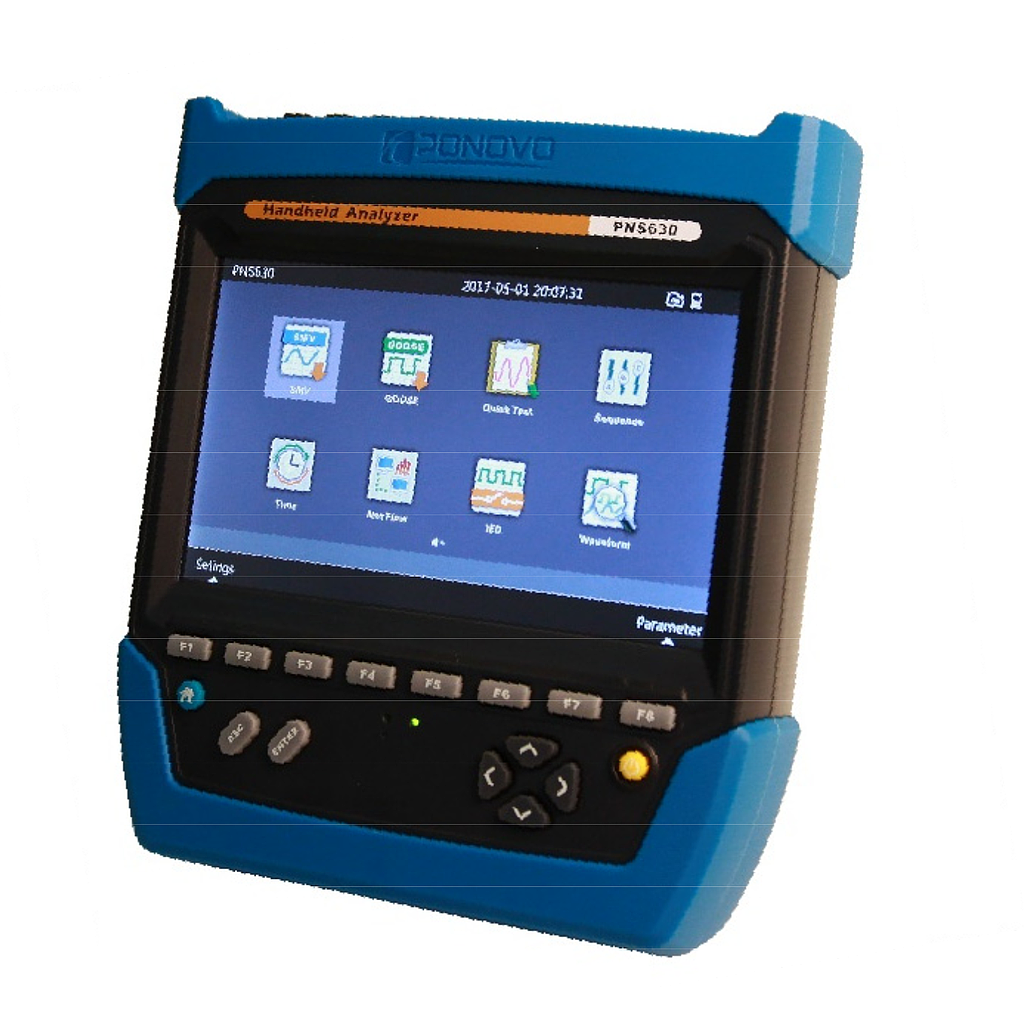

Ponovo PNS630 ເຄື່ອງວິເຄາະເຄືອຂ່າຍ IEC61850 ມືຖື
Interface
Optical Ethernet: 4×100Mbps optical Ethernet port receiving/sending 9‐2 message, GOOSE massage, 1588 (LC type, wavelength: 1310nm)
Optical Serial: 2 receiving ports for FT3, B‐code, PPS signal. 2 sending ports for FT3, B‐code (ST type, wavelength: 850nm, baud rate of 2.5M/5M/10M are supported).
Ethernet: 1100 Mbps Ethernet port, type: RJ‐45
Dry Contact: 1 pair dry contact inputs, 1 pair dry contact outputs
Micro SD: Micro SD used for recording and saving the waveform, pictures files and importing SCL configuration files
USB Device: Connect to PC as a memory device
Power Supply: Connect to the power adaptor
Operate Environment
Environment Temperature: ‐5 ~ +45°C
Storage Temperature: ‐25 ~ +70°C
Relative Humidity: 5%‐ 95%
Storage Humidity: ≤ 85%
Atmosphere Pressure: 86kPa‐106kPa
Power
In‐build battery group: 12.6V 4400mAh. Li‐ion battery group
Power Adaptor
Input: AC 100‐240V, 50/60Hz
Output: DC 15V, 1.66A
Charge Time: It takes 4‐6 hours for the battery to be charged.(LED off: charged; LED on: charging).
Safety Standard
Anti‐interference of ESD: GB/T 17626.2‐2006 grade4
Anti‐interference of RF EMF: GB/T 17626.3‐2006 grade3
Anti‐interference of EFT/B: GB/T 17626.3‐2006 grade4
Anti‐interference of PFMF: GB/T 17626.3‐2006 grade3
Dimensions and Weight
Dimensions: 190mm (W) x210mm (H) x64mm(D)
Weight: ≤1.35kg
