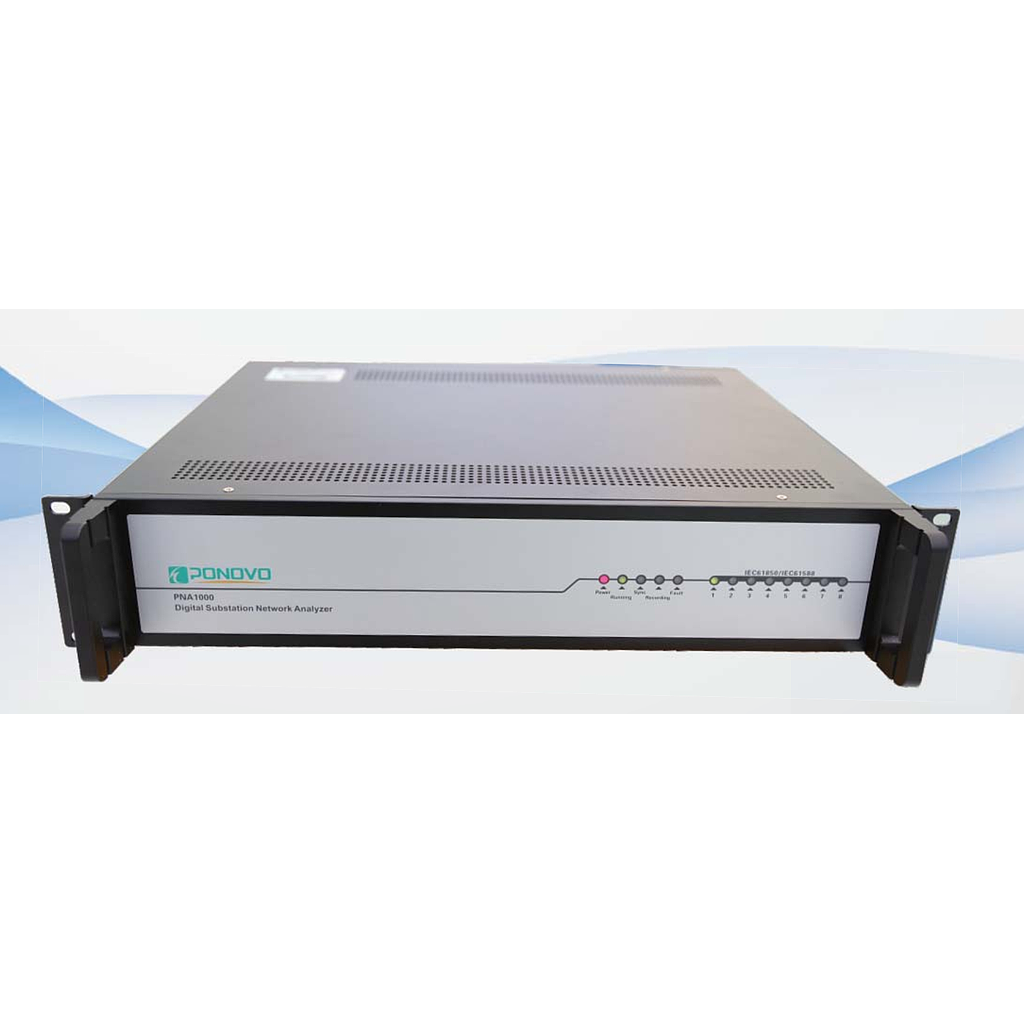

Ponovo PNA1000 IEC61850 Digital Substation Network Analyzer
Hardware: optional
Data access: ≥ 1100Mb/s
Power supply: AC: 220V or 110V (only one gear); DC: 220V or 110V (only one gear)
Ethernet port:
2 RJ45 Ethernet ports (Gbps and 1000Mbps are available)
8 pairs of Lc ports, supporting 9-2, GOOSE, MMS and PTP messages
Communication port: 1 RJ45 Ethernet port
Synchronization interface: 1 IRIG-B port (ST)
Synchronization accuracy: <700ns
24 hours accuracy: <130ms
Potential free output: 4
Message access capability: 100Ms/s/port, complete record data with total flow 1100Mb/s and 0% package loss rate
Message storage capacity: based on the number of MU
Indictor lights: power,running, sync, recording, fault
