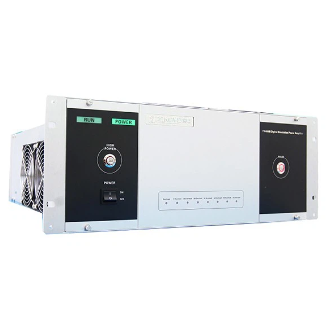

Ponovo PA460Bi-H Digital Real Time Simulation Power Amplifier
Voltage amplifier
Voltage output: 6×300V (L‐N); 1×600V (L‐L)
Max. output power: >45VA, at 6x300V; >90VA, at 3×300V; >170VA, at 1×600V
Input signal: 0~±6V RMS (±8.4Vpek)
Differential input impedance: 20kΩ
Gain: 50V/V
Voltage accuracy: <0.2% (5V‐300V)
Voltage typical accuracy: <0.1%
Harmonic distortion ratio: ≤0.1%
Linearity: ≤0.2%
Frequency range: DC‐3kHz±1dB
Step response: < 80μs
Input and output delay: < 80μs
Phase accuracy: 0.2°
Current amplifier
Max. current output: 6×32A RMS(L‐N); 3×64A RMS(2L‐N); 1×180A RMS(6L‐N)
Max. output power: 6×450VA typ. at 32A; 6×400VA guar. at 32A; 3×800VA typ. at 64A; 3×700VA guar. at 64A; 1×1200VA typ. at 180A; 1×1000VA guar. at 180A
Input Signal: 0~±7.2V RMS (±10.2Vpek)
Differential input impedance: 20kΩ
Gain: 4.5A/V
Current accuracy: 0.2% (0.5‐32A)
Current typical accuracy: <0.1%
Phase accuracy: 0.2°
Harmonic distortion ratio: ≤0.2%
Frequency range: DC-5kHz±1dB
Step response: < 20μs
Input/output delay: < 20μs
Linearity: ≤0.2%
Power supply: AC 220V/240V, 50/60Hz
Weight: 27kg
Chassis/ Dimension(W×H×D): 4U 19 inches/ 482mm×172mm×580mm
Environmental conditions
Operating temperature: -5℃~50℃
Storage temperature: -25-+70°C
Related humidity: 20%RH~85%RH
Pressure: 86 kPa~106kPa
EMC (Emission): IEC-61000-3-2/3
EMC (Immunity): IEC-61000-4-2/3/4/5/6/11
Safety: IEC/EN 61010-1:2010; UL 61010-1:2012; CAN/CSA-C22.2 No. 61010-1-12
Surrounding conditions: No dust, vibration and severe electromagnetic interference
