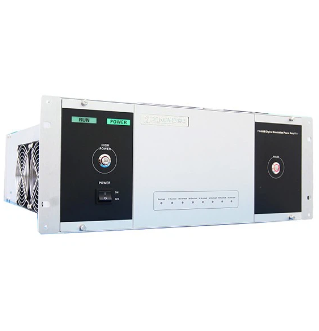

Ponovo PA460Bi-C Digital Real Time Simulation Power Amplifier
Current amplifier
Max. current output: 6×15A RMS (L-N); 3×30A RMS (2L-N); 1×90A RMS (6L-N)
Max. output power: 6×135VA at 15A; 3×270VA at 30A;1×450VA at 90A
Input Signal: 0~±5V RMS (±7.07Vpek)
Differential input impedance: 20kΩ
Gain: 3A/V
Current accuracy: 0.2%(0.5-15A)
Current typical accuracy: <0.1%
Phase accuracy: 0.2°
Harmonic distortion ratio: ≤0.2%
Frequency range: DC-5kHz±1dB
Step response: < 20μs
Input/output delay: < 20μs
Linearity: ≤0.2%
Environmental conditions
Operating temperature: -5℃~50℃
Storage temperature: -25-+70°C
Related humidity: 20%RH~85%RH
Pressure: 86 kPa~106kPa
EMC (Emission): IEC-61000-3-2/3
EMC (Immunity): IEC-61000-4-2/3/4/5/6/11
Safety: IEC/EN 61010-1:2010; UL 61010-1:2012; CAN/CSA-C22.2 No. 61010-1-12
Surrounding conditions: No dust, vibration and severe electromagnetic interference
Power supply: AC 220V/240V, 50/60Hz
Weight: 27kg
Chassis/ Dimension(W×H×D): 4U 19 inches/ 482mm×172mm×580mm
