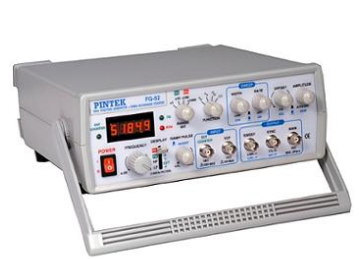

PINTEK FG-52 Function Generator (5MHz ; 4 Function , 8 Range / 60MHz Auto Counter)
ຕິດຕໍ່
ການຊຳລະເງິນທີ່ປອດໄພ
ການຮັບປະກັນຄຸນນະພາບ
ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ
ມີບໍລິການຈັດສົ່ງ
0.05Hz ~ 5MHz FUNCTION GENERATOR
LINEAR / LOG SWEEP FUNCTION
DUTY CYCLE COUNTROL
INVERT FUNCTION
AUTO RANGE AUTO GATETIME COUNTER
0.001Hz COUNTER RESOLUTION
| FEATURE | ITEM | SPECIFICATIONS |
| MAIN OUTPUT | Frequence Range | 0.5Hz to 5MHz in 8 Range |
| Waveforms | 4 Waveforms(Sins, Square, Triangle, DC) | |
| Amplftude | 20Vp-p / Open, 10Vp-p / 50Ω Load | |
| Attenuator | X20 (-26dB) ±2%, X1 (0dB) | |
| Output Impedance | 50Ω (±2%) | |
| DC Offect | ±10V With Pull ADJ Switch | |
| Freq Accuracy | ±0.02% + ID | |
| Distortion | <1%, 1Hz to 100KHz | |
| Rise / Fall Time | <90ns | |
| V.C.F Input | 0 to ±10V control frequency to 1000:1 | |
| SYNC OUTPUT | Rise time | <60ns |
| Level | >3Vp-p (open) | |
| Wavefrom | Square, pluse | |
| SWEEP | MODE | Linear / Log Sweep |
| Width | >100:1 continuously variable | |
| Rate | From 10mS to 5S continuously variable | |
| Sweekp Output | 10Vp-p (open) | |
| Output Impedance | 1KΩ±2% | |
| COUNTER | Desplay | 5digits 0.36" Red LED desplay with Autorange |
| Gate time | Auto Select (0.25S~10S) | |
| Resolution | 0.001Hz | |
| MODE | INT / EXT HF / EXT LF (100KHz Filter) | |
| Accuracy | ±Time Base Accuracy ±1count | |
| Time Base | 20MHz ±20PPM (23±5°C) | |
| Frequence Range | 0.2Hz~60MHZ | |
| Sensitivity | 25m Vrms at 1MHz | |
| Max Input | 150Vrms | |
| Input Impedance | 1MΩ±2% | |
| Sensitivity | AC115V/230V ±10%, 50/60Hz, 25watt | |
| Max Input | 275(W) X 90(H) X 300(D) mm | |
| Input Impedance | 2.5kg |
