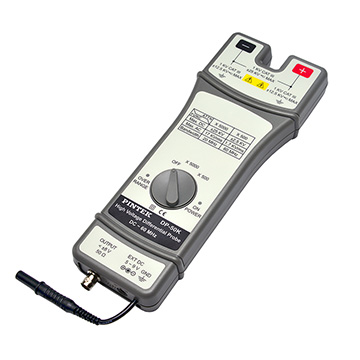

Bandwidth:
DC - to 60 MHz (-3 dB) for X500
DC - to 20 MHz (for attenuation X5000)
Attenuation: x 500, or X5000
Accuracy: ± 2%
Voltage Input Ranges (DC+AC peak to peak):
≦ 25 KV DC for X5000, (i.e about 17 KV RMS or 25 KV DC)
≦ 2.5 KV DC for X500, (i.e about 1.7 KV RMS or 2.5 KV DC)
Permitted Max Input Voltage
Max differential voltage: 50 KVp-p (DC+AC peak to peak)
Max voltage between each input terminal and ground: 8.8 KV RMS
Input Impedance:
Differential: 140 MΩ // 3 pF
Between terminals and ground: 280 MΩ // 1.5 pF
Output: ≦ ± 5 V
Output Impedance: 50 Ω
Rise Time: 5.8 ns for X500; 17.5 ns for X5000
Rejection Rate on Common Mode: 60 Hz: ＞80 dB , 100 Hz: ＞60 dB, 1 MHz: ＞50 dB
Power Supply: External 9 V DC power supply.
Consumption: 120 mA max (1.1 WATT)
