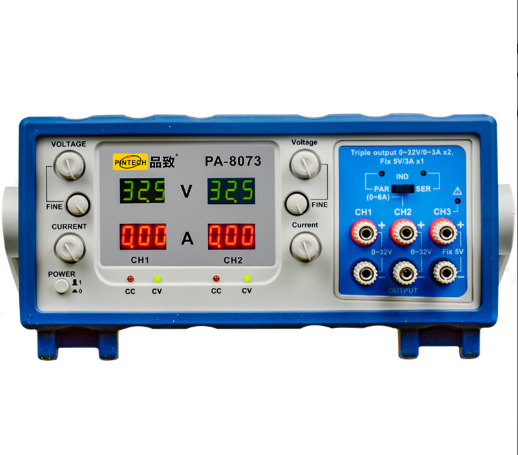

Pintech PA-8073 ການສະຫນອງພະລັງງານ DC (DC 0~32V/3A x2, 5V/3A)
Power Transformer: E.I Type Transformer
Max. Continual Output Power: 207VA
Max. Raised Temperature < 45°C
Independent Output: 0~32V/0~3A x 2, 5V Fixed / 0~3A
Constant Voltage Characteristic
Regulation: Line <0.01%+3mV, Load <0.01%+5mv
Ripple & Noise: < 0.4mVrms
Temperature coefficient < 300PPM/°C
Constant Current Characteristic
Regulation: Line <0.2%+2mA, Load <0.2%+3mA
Ripple & Noise: < 2.5mArms
5V Fixed Output
Regulation: Line < 5mV，Load <10mV
Ripple & Noise: < 1.5mVrms
Voltage Accuracy: 5V ± 0.25V
Max. Output Current: 3A
Tracking Operation
Parallel Regulation: Line < 0.01%+3mV, Load < 0.01+5mV
Series+and-Supply Regulation:
Line < 0.01%+3mV, Load < 0.01+5mV
Slave tracking error <0.5%+digital of the master 2
Series Single Supply Regulation Line <0.01%+5mA,Load <300mV
Display
Voltage: 3 Digits 0.36" Green LED
Current: 3 igits 0.36" Red LED
Accuracy: 0.1% + 2位
General
Power source: ACV 115/230 ± 10%, 50/60Hz
Dimension ( W x H x D): 255 x 120 x 380 mm
Weight: 7.9kg
