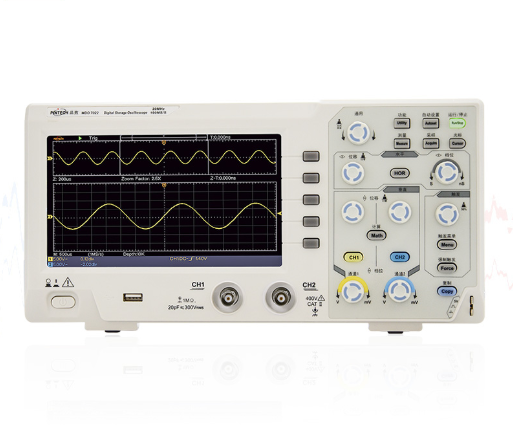

Pintech MDO 7022 Benchtop oscilloscope (2 channels, 20MHz, 100MS/s)
Bandwidth: DC-20MHz
Rea-time sampling rate: 100MS/s
Storage depth: 10k
Vertical resolution: 8bit
Time base accuracy (s/div): 5ns/div - 1000s/div, step by 1-2-5
Rise time（Typical values on BNC）: ≤17.5ns
Channel: 2
Display: 7" color LCD, 800 x 480 pixels
Input impedance: 1MΩ ± 2%, and 20pF±5pF in parallel
Isolation between channels: 50Hz : 100 : 1, 10MHz : 40 : 1
Input voltage: 400V (PK - PK) (DC+AC, PK - PK)
DC gain accuracy: ±3%
Probe attenuation coefficient: 1X, 10X, 100X, 1000X
Low frequency response (AC coupling): ≥10Hz (BNC, -3dB)
Waveform interpolation: sin (x) / x
Time interval（△T) accuracy of measurement:
Single: ±(1sample interval time+ 100ppm x reading + 0.6ns)
Average >16 : ±(1sample interval time + 100ppm x reading + 0.4ns)
Input coupling: DC, AC , GND
Vertical sensitivity: 5mV/div - 5V/div (at input)
Trigger type: Edge, Video
Trigger mode: Auto, Normal, and Single
Cursor measurement: Voltage difference between cursors (△V), time difference between cursors (△T)
Waveform calculation: ＋, －, x, ÷, invert, FFT
Waveform storage: 16 sets of waveforms
Standard interface: USB host, USB device
Power supply: 100V - 240V AC, 50/60Hz, CAT II
