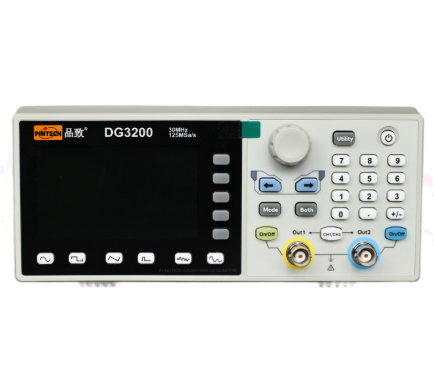

Pintech DG3200 Function Generator Waveform (Dual-channel, DC-30MHz)
Channel: Dual-channel(independent equivalent)
Bandwith: DC-30MHz
Real time sampling rate: 125 MSa/s
Waveform :
Standard waveform: sine,square,pulse,ramp,noise
Arbitrary Waveform: There are more than 160 kinds of Sinc, exponential rise, exponential fall, ECG, Gaussian, semi-sagittal, Lorentz, dual audio, and DC voltages
Frequency characteristics:
Sine wave: 1μHz-30MHz
Fang Bo: 1μHz ~ 15MHz
Pulse wave: 1μHz ~ 15MHz
Sawtooth wave: 1μHz ~ 1MHz
noise: 20MHz (Gaussian white noise )
Arbitrary Wave: 1μHz ~10MHz
Stability: ±30ppm, 0°C - 40°C
Input/output:
Display: 3.6-inch color LCD display
Method: External modulation input, External trigger input, Synchronous output
Standard Interface: USB Host, USB Device
Dimension (LxHxW): 220x92x157
Weight: 0.8kg
