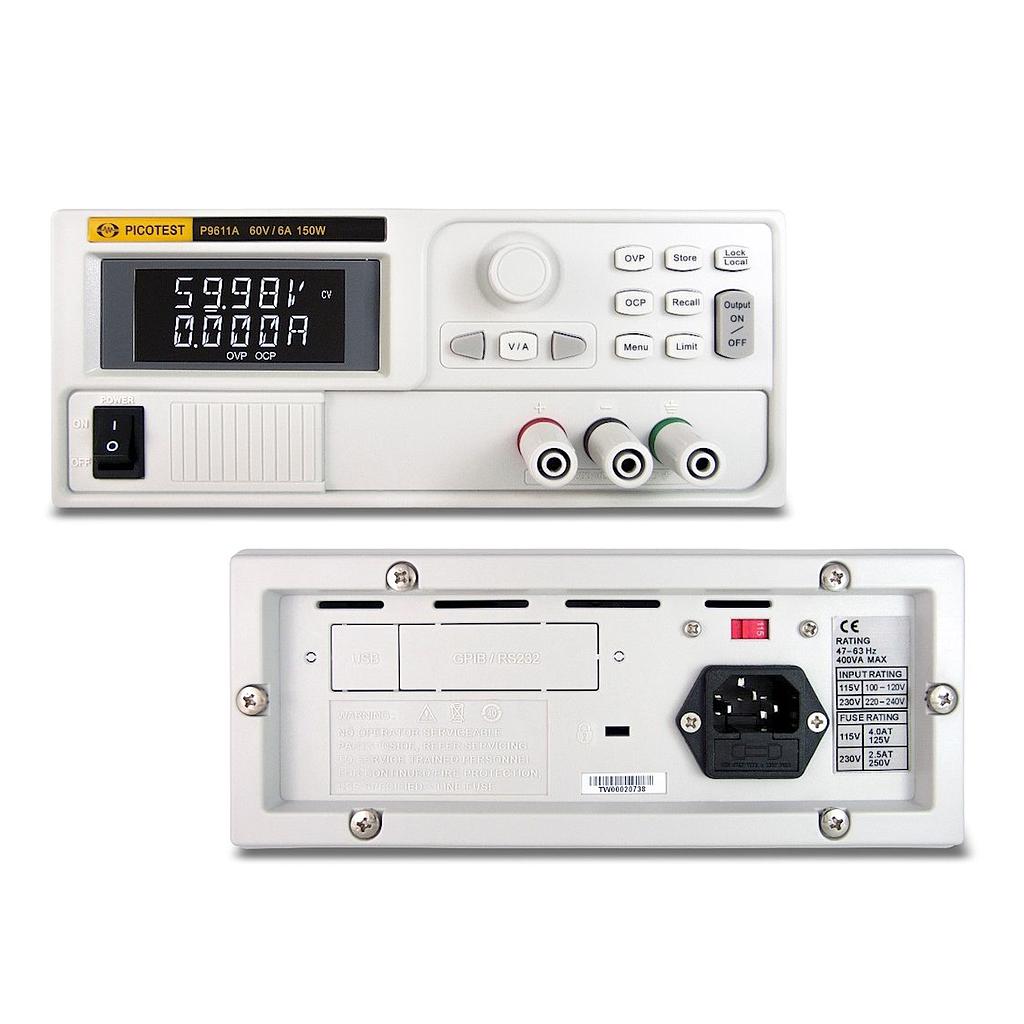

PICOTEST P9611A ໂໝດປະສົມການສະໜອງພະລັງງານ DC (150W/60V/6A)
Output Ratings (0°C ~ 40°C):
Voltage: 0 to 60 V
Current: 0 to 6 A
Programming Accuracy (1 Year 25 °C ±5 °C):
Voltage: 0.05% + 10 mV
Current: 0.2% + 10 mA
Read-Back Accuracy (1 Year):
Voltage: 0.05% + 5 mV
Current: 0.15% + 5 mA
Ripple and Noise (20 Hz to 20 MHz):
Voltage: < 0.5 mVrms, < 3 mV p-p
Current: < 2 mArms
Common Mode Current: < 1.5 µArms
Load Regulation ±(% of Output + Offset):
Voltage: < 0.01% + 2 mV
Current: < 0.01% + 250 μA
Line Regulation ±(% of Output + Offset):
Voltage: 0.01% + 2 mV
Current: 0.01% + 250 μA
Programming Resolution:
Voltage: 1 mV
Current: 1 mA
Read-Back Resolution:
Voltage: 1 mV
Current: 0.21 mA
Meter Resolution:
Voltage: 10 mV
Current: 1 mA
Transient Response Time:
Less than 50 usec for output recover to within 15 mV following a change in output current from full load to half load or vice versa.
Command Processing Time via GPIB:
Read-Back Commands: Maximum time to read-back output by Measure commands: < 20 ms
Output Programming Range:
Voltage: 0 to 60 V
Current: 0 to 6 A
Temperature Coefficient ±(% of Output + Offset):
Voltage: 0.01% + 10 mV
Current: 0.02% + 3 mA
Stability (% of Output + Offset):
Voltage: 0.05% + 10 mV
Current: 0.15% + 2 mA
Voltage Programming Speed:
Full Load Up (0 V ~ 60 V): < 100 ms
Full Load Down (60 V ~ 0 V): < 50 ms
No Load Up (0 V ~ 60 V): < 35 ms
No Load Down (60 V ~ 0 V): < 500 ms
General Specification:
Power Supply: 100V-120V (115V Range) 220V-240V (230V Range)
Power Line (Hz): 47Hz~63Hz
Interfaces: Optional USB/USB&GPIB
Power Consumption: 400VA Maximum
Size & Weight for Rack: 2500 (WxHxD) 214.6 x 88.6 x 280 mm, <5.5 Lbs

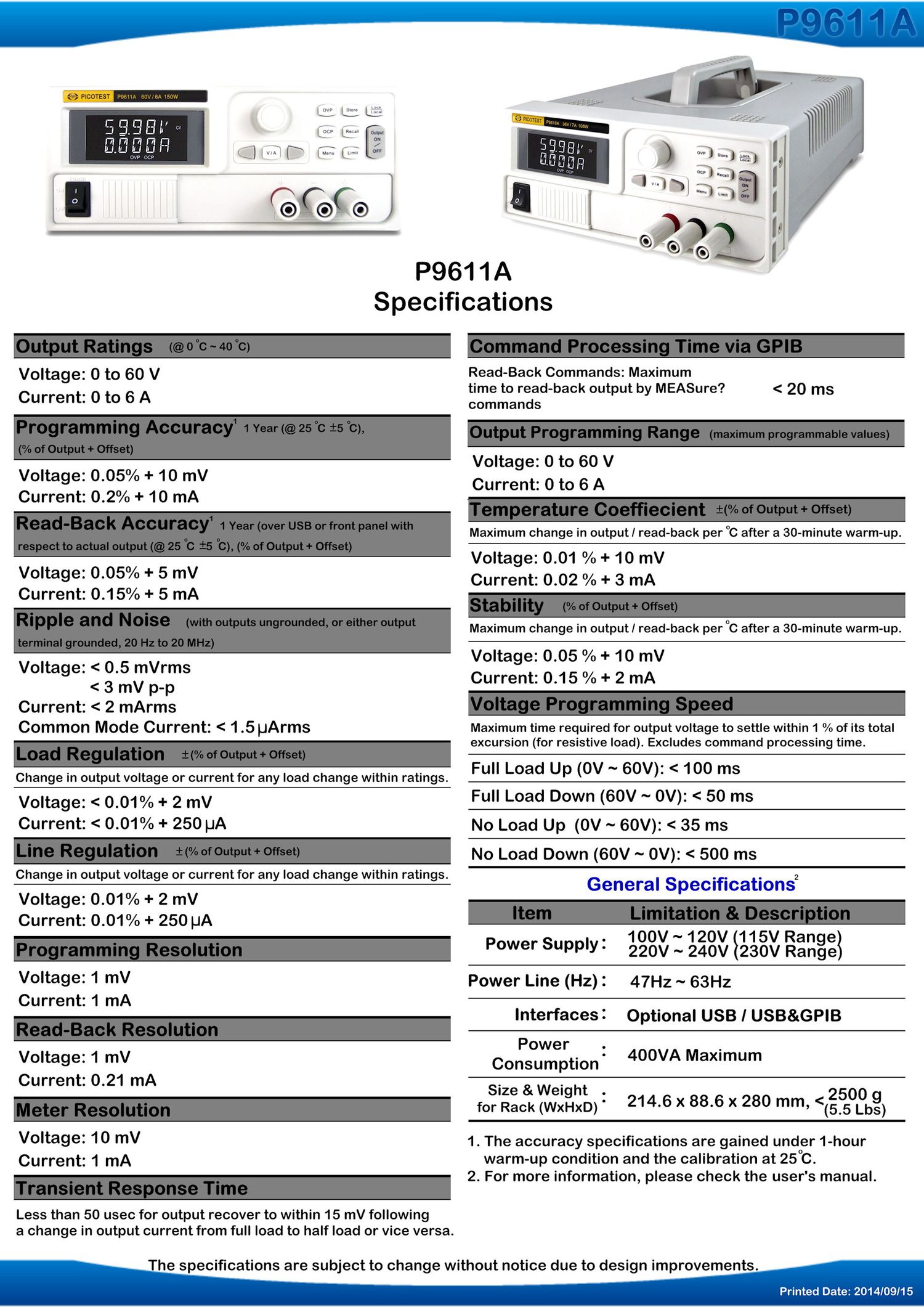

For detailed specifications, please read the attached file below
