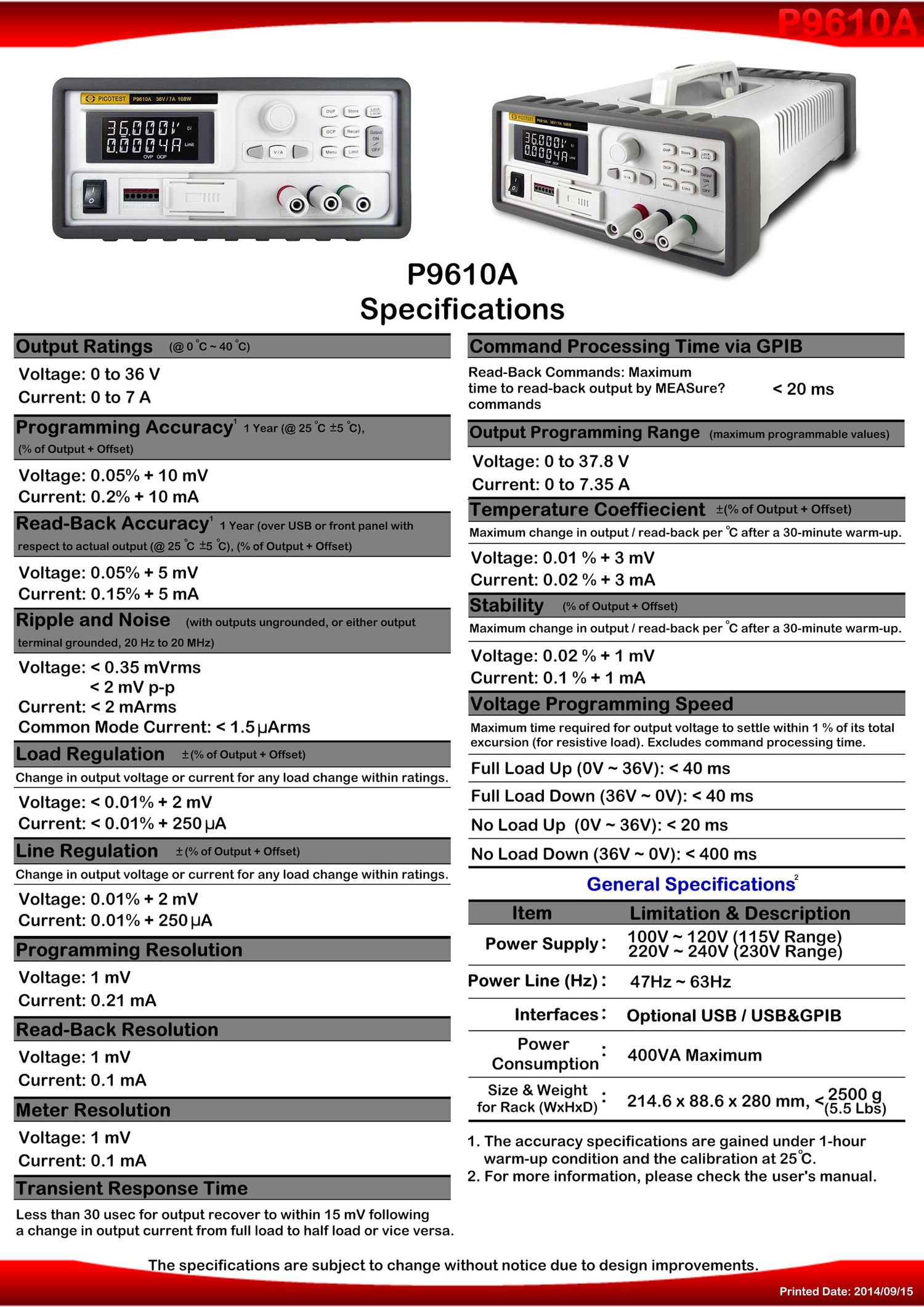

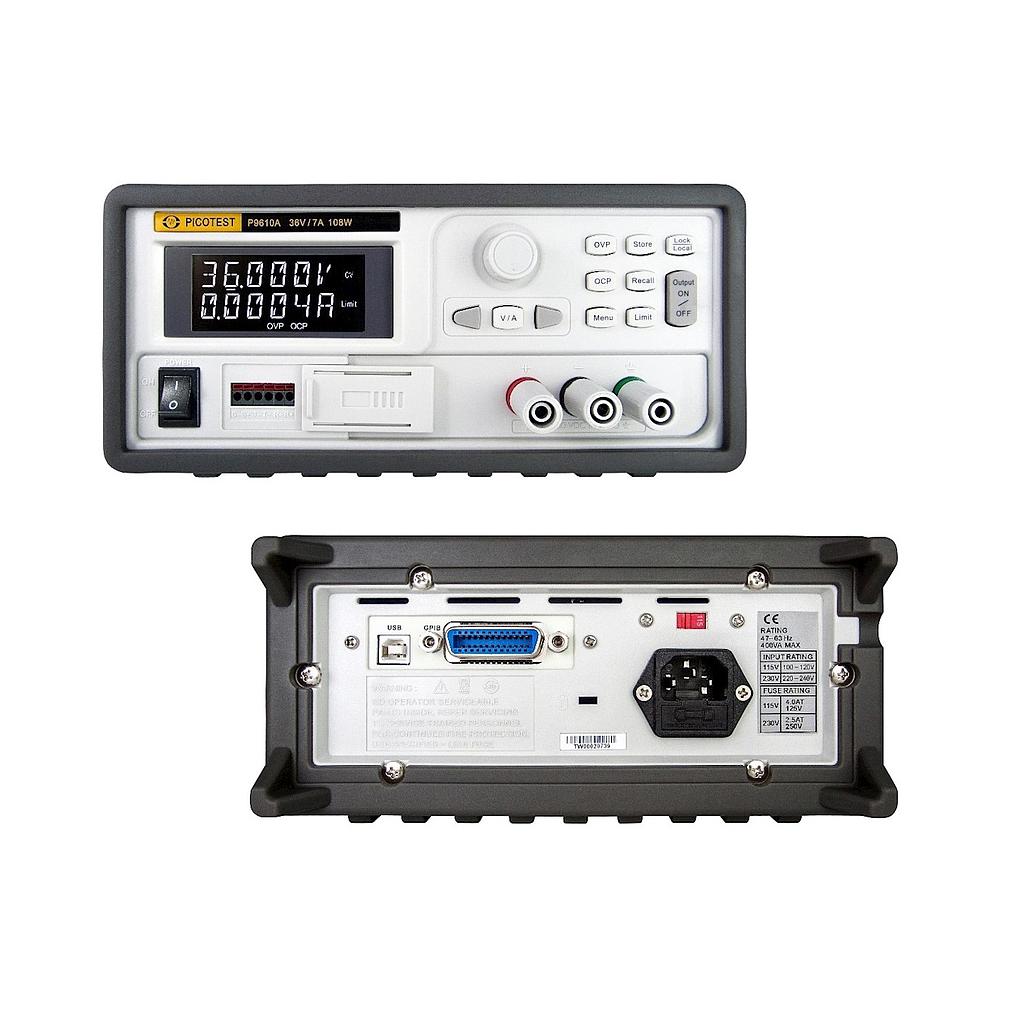

PICOTEST P9610A ໂໝດປະສົມການສະໜອງພະລັງງານ DC (108W/36V/7A)
Output Ratings (0°C ~ 40°C):
Voltage: 0 to 36 V
Current: 0 to 7 A
Programming Accuracy (1 Year 25 °C ±5 °C), (% of Output + Offset):
Voltage: 0.05% + 10 mV
Current: 0.2% + 10 mA
Read-Back Accuracy (1 Year):
over USB or front panel with respect to actual output (25 °C ±5 °C), (% of Output + Offset)
Voltage: 0.05% + 5 mV
Current: 0.15% + 5 mA
Ripple and Noise (with outputs ungrounded, or either output terminal grounded, 20 Hz to 20 MHz)
Voltage: < 0.35 mVrms, < 2 mV p-p
Current: < 2 mArms
Common Mode Current: < 1.5 µArms
Load Regulation ±(% of Output + Offset):
Change in output voltage or current for any load change within ratings.
Voltage: < 0.01% + 2 mV
Current: < 0.01% + 250 μA
Line Regulation ±(% of Output + Offset):
Change in output voltage or current for any load change within ratings.
Voltage: 0.01% + 2 mV
Current: 0.01% + 250 μA
Programming Resolution:
Voltage: 1 mV
Current: 0.21 mA
Read-Back Resolution:
Voltage: 1 mV
Current: 0.1 mA
Meter Resolution:
Voltage: 1 mV
Current: 0.1 mA
Transient Response Time:
Less than 30 usec for output recover to within 15 mV following a change in output current from full load to half load or vice versa.
Command Processing Time via GPIB:
Read-Back Commands: Maximum time to read-back output by mesure commands: < 20 ms
Output Programming Range (maximum programmable values):
Voltage: 0 to 37.8 V
Current: 0 to 7.35 A
Temperature Coefficient ±(% of Output + Offset):
Maximum change in output / read-back per °C after a 30-minute warm-up.
Voltage: 0.01% + 3 mV
Current: 0.02% + 3 mA
Stability (% of Output + Offset):
Maximum change in output / read-back per °C after a 30-minute warm-up.
Voltage: 0.02% + 1 mV
Current: 0.1% + 1 mA
Voltage Programming Speed:
Maximum time required for output voltage to settle within 1% of its total excursion (for resistive load). Excludes command processing time.
Full Load Up (0 V ~ 36 V): < 40 ms
Full Load Down (36 V ~ 0 V): < 40 ms
No Load Up (0 V ~ 36 V): < 20 ms
No Load Down (36 V ~ 0 V): < 400 ms
General Specifications
Power Supply: 100V-120V (115V Range), 220V-240V (230V Range)
Power Line (Hz): 47Hz~63Hz
Interfaces: Optional USB/USB&GPIB
Power Consumption 400VA Maximum
Size & Weight: 2500 g for Rack (WxHxD) 214.6 x 88.6 x 280 mm, <(5.5 Lbs)
Limitation & Description: 100V-120V (115V Range)
For detailed specifications, please read the attached file below
